| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | YG812D |
| Minimum Order Quantity: | 1 set |
| Price: | USD3000-5000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Test Standards: | ASTM D751, AATCC 127, DIN 53886 | Test Units: | Pa, Kpa, MmHg, CmH2O |
|---|

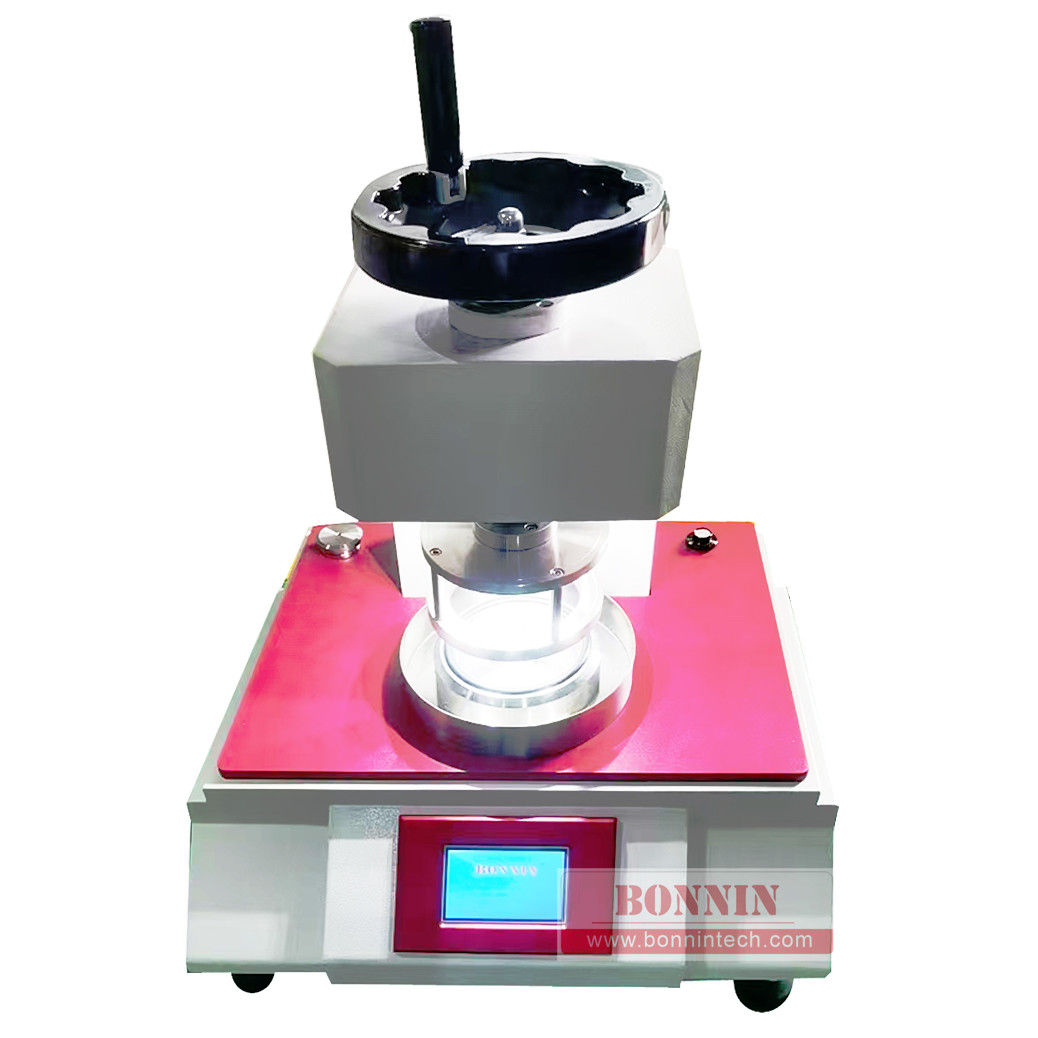

This YG812D Textile Fabric Water Permeability Tester Digital Hydrostatic Pressure Head Tester is use for waterproofing, hydrostatic test of various fabrics (such as canvas, coated cloth, tent cloth, sheet, rain clothing cloth and geotextile materials, etc.)
Standards
GB / T 4744, FZT 01004, ASTM D751, AATCC 127, DIN 53886, JIS L 1092
Instrument Features

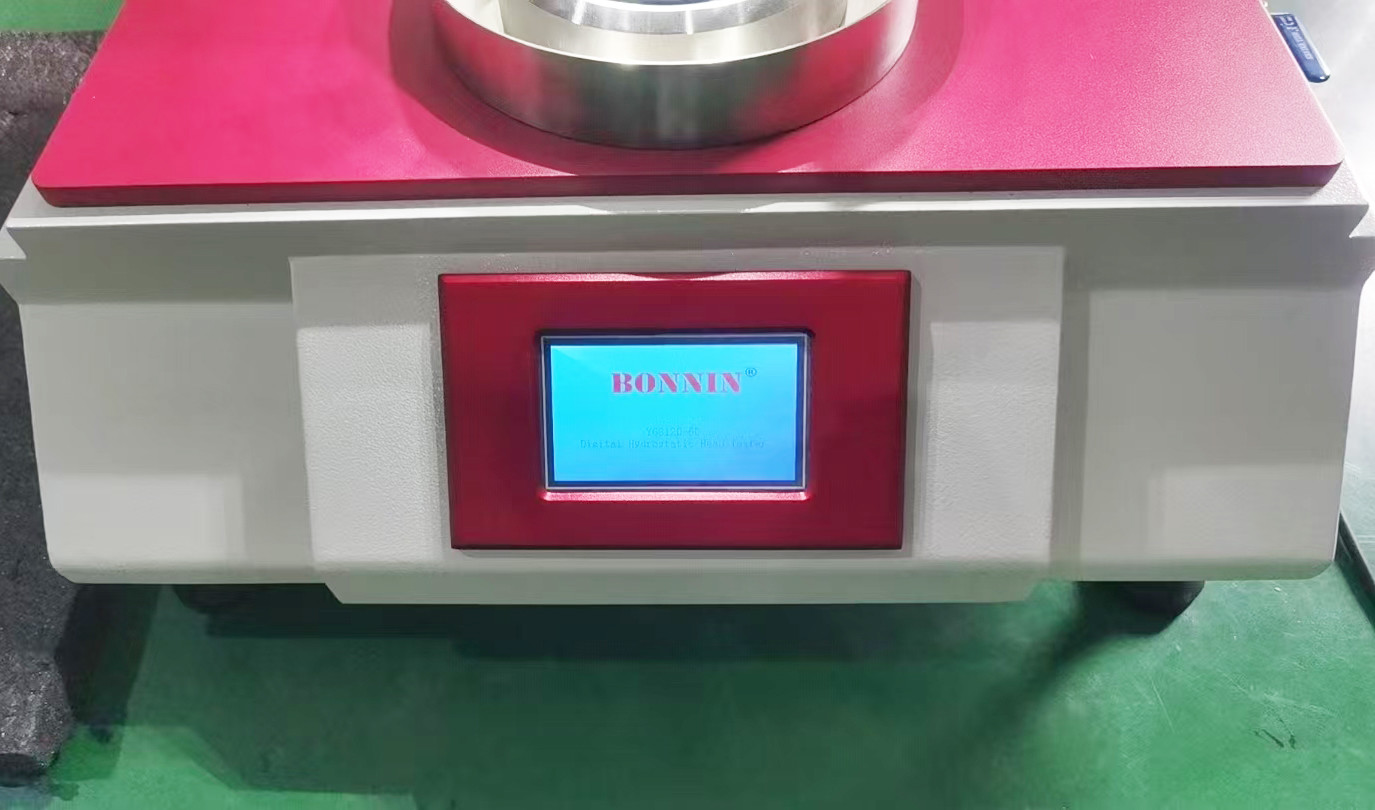

1. Micro-computer touch screen display control, English menu operation, simple and quick operation.
2. The use of computer control of water flow, the pressure rate range and can be adjustable, accurate pressure.
3. The use of imported high-precision pressure sensor, automatic sensor overload protection, pressure control using dynamic feedback adjustment, effectively prevent the pressure overshoot.

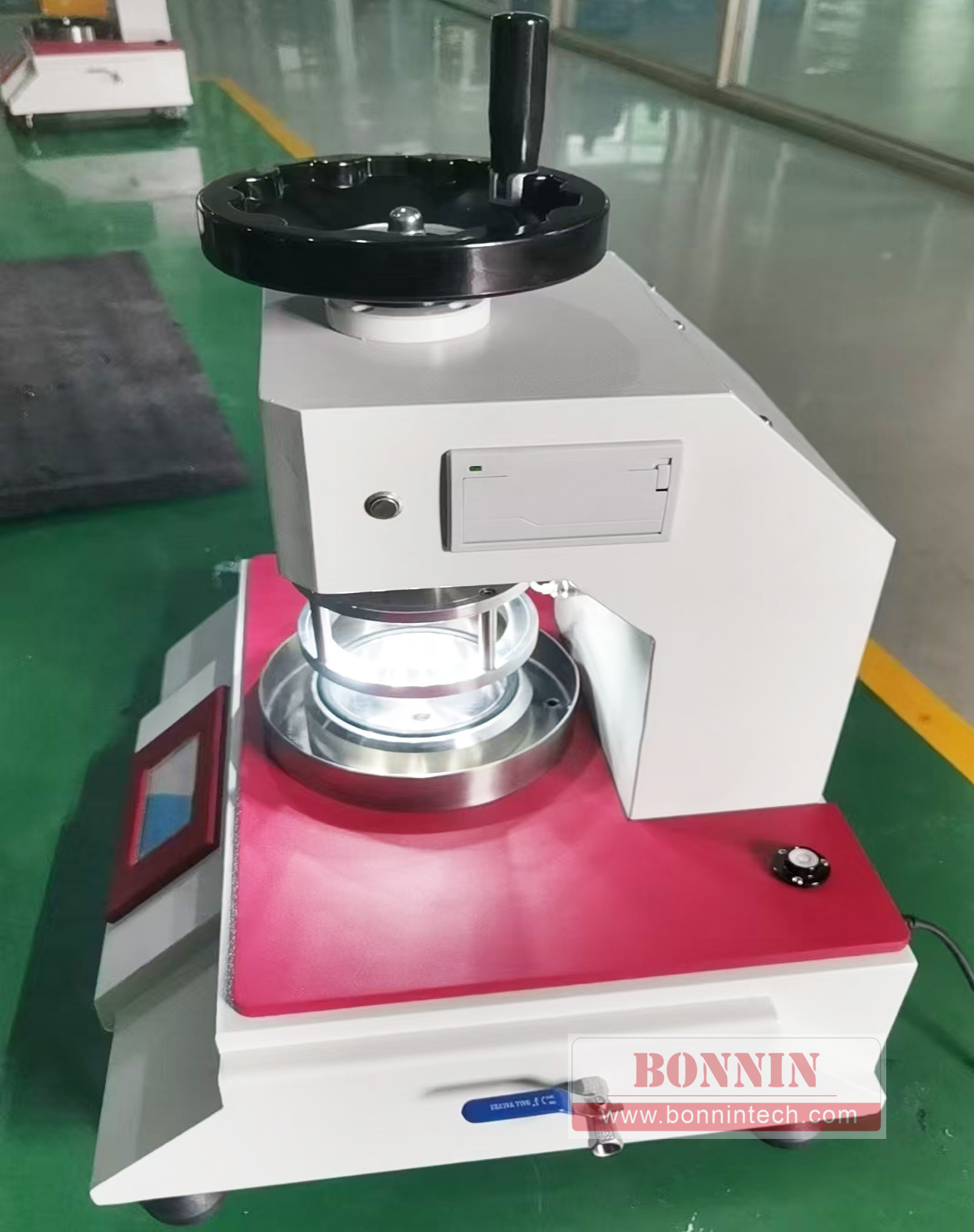

4. Manual wheel clamping sample, convenient and quick, so that the sample force evenly to prevent damage to the sample.
5. Two test mode, pressurized method and water leakage method.
6. Built-in new national standard test method has automatic rating function.
7. Test units are free to switch: Pa, Kpa, mmHg, cmH2O.
8. Built-in professional LED lighting device, easy to observe the water droplets.
9. All the contact with the water all the color made of stainless steel.
Technical Parameters
1, technical indicators:
| Model | Test range | Accuracy | Water pressure increasing rate | Test head area |
| YG812D-5 | 100pa-50kpa | 0.2%F.S | 1000pa-100kpa | 100cm² |
| YG812D -20 | 500pa-200kpa | 1000pa-100kpa | ||
| YG812D -50 | 1kpa-500kpa | 1000pa-100kpa | 7.8cm²(Optional) |
2, pressure display resolution: 0.1pa
3, sensor test accuracy: ≤ 1% (single sensor full range of 5% -100% range)
4, experimental area: 100cm2, 7.8cm2 (optional);
5, pressure rate: 1KPa ~ 10KPa / min (adjustable);
6, working mode: 5 kinds
7, display mode: color in English
8, the use of power: AC 220V ± 10% 50Hz 500W
9, dimensions: 550 × 400 × 5000mm
10, weight: 50kg
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
