| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | YG021D |
| Minimum Order Quantity: | 1 set |
| Price: | USD3000-5000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Measuring Range: | 20~5000cN | Accuracy: | ±0.01cN |
|---|

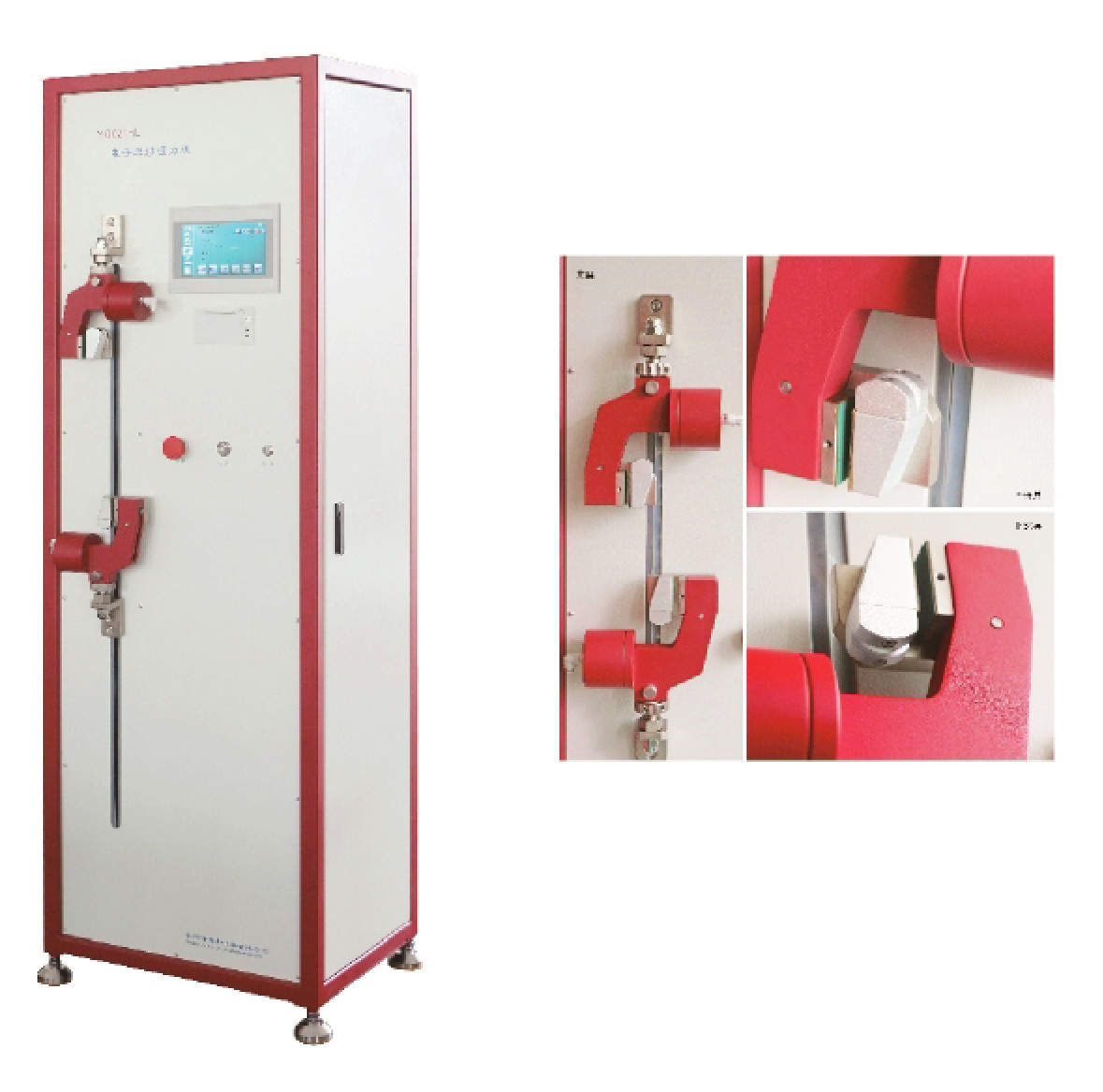

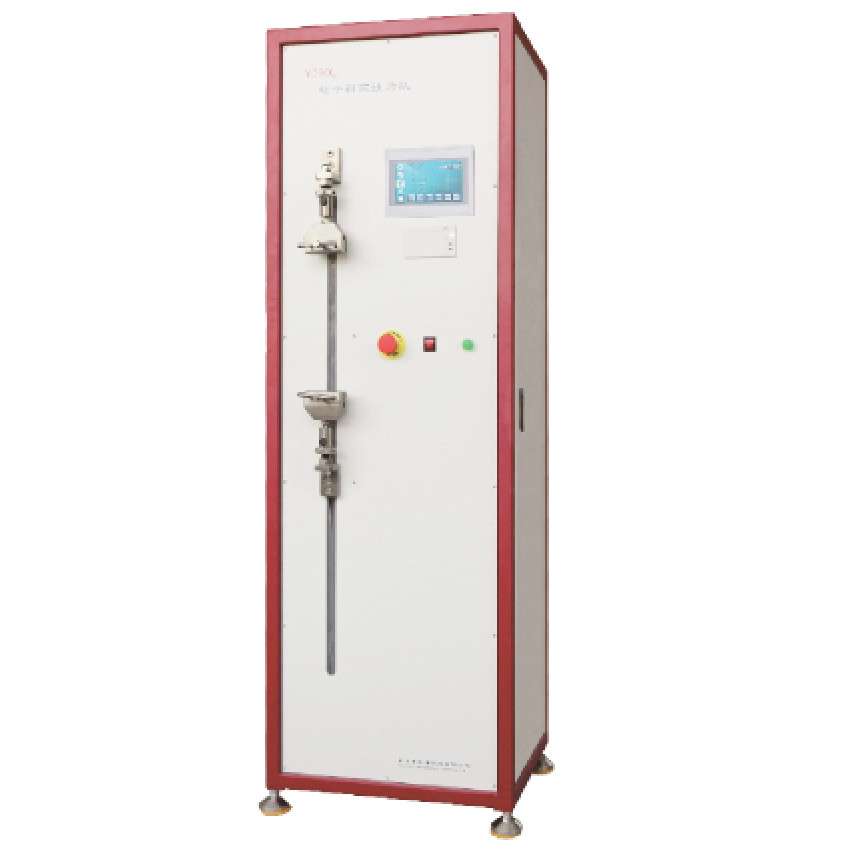

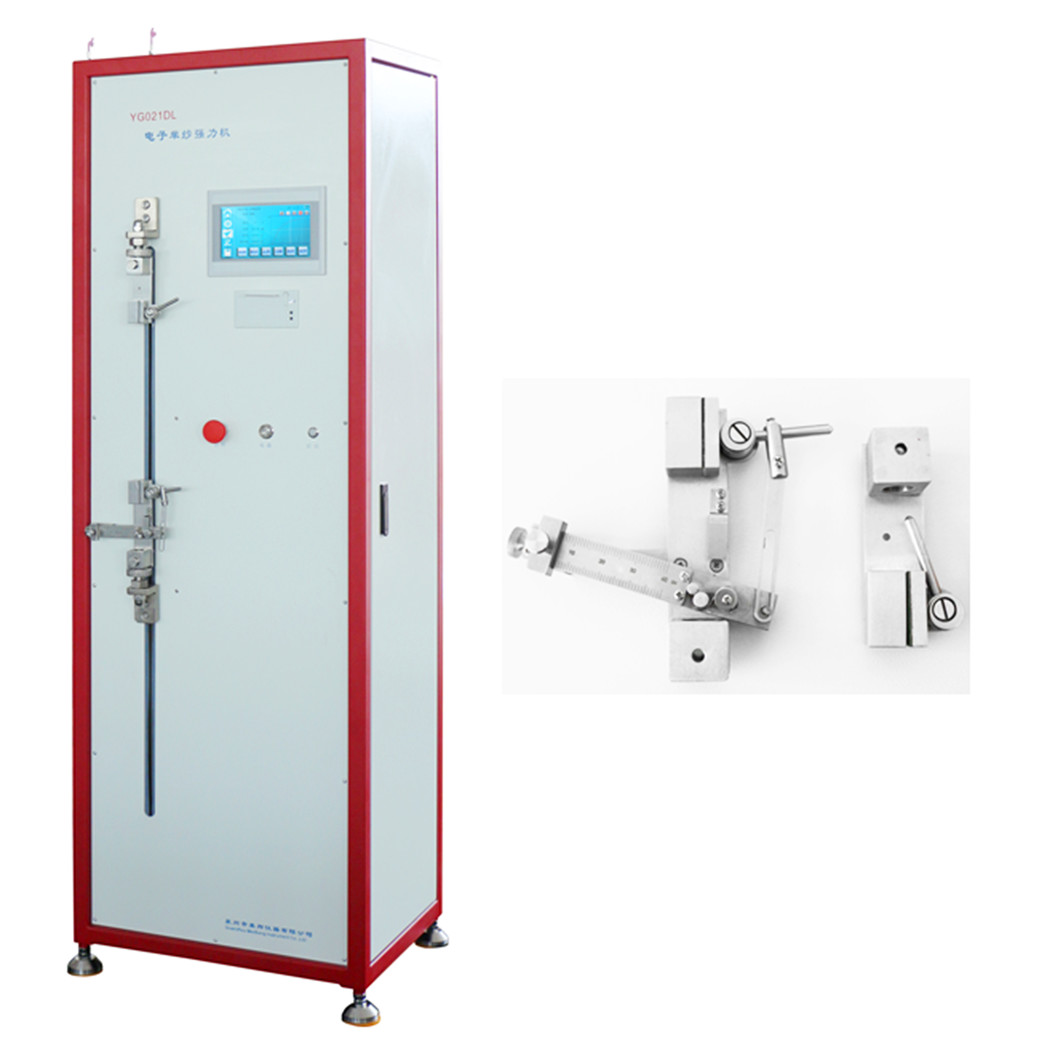

YG021D Electronic Single Yarn Strength Tester is used for testing the breaking strength and elongation of single yarns and pure or blended yarns of various cotton, wool, linen, silk, chemical fiber and core-spun yarns.
Test standards
GB/T 14344, GB/T 3916, ISO 2062, ASTM D 2256, etc.
Instrument characteristics
1. Touch screen control, Chinese and English menus, human-computer dialogue mode, easy to operate.
2. Built-in thermal printer, convenient for quick printing of test results on site.
3. Professional computer analysis software can realize two-way operation with the computer, and can perform report statistics, intuitive analysis of curves, etc.; the software is open software, and the required test program can be edited according to its own needs; and remote instrument upgrade and maintenance are supported.
4. The transmission system adopts stepper motor and synchronous pulley transmission; the instrument has low operating noise and high elongation accuracy.
5. Multiple protection measures are adopted: upper and lower limit protection devices; sensor overload protection; overcurrent, overvoltage and other protections; displacement and load limit software protection can be set; and real-time monitoring and display of fault information of main components; so the instrument is safer and more reliable to use.
6. A variety of humanized automatic modes are provided, the instrument clamping distance is digitally set, and automatic positioning is performed.
7. Instrument control mode: host touch screen control and desktop computer control are optional.
Technical parameters
1. Working mode: Constant rate of elongation (CRE) principle, microcomputer control, LCD Chinese display, support online communication
2. Measuring force range: 1% to 100% of full scale
Model 5 type 50 type
Full scale 50N 500N
3. Test accuracy: ≤0.2%F·S
4. Stretch speed: 1 to 1000mm/min
5. Elongation range: 800mm (without clamp)
6. Clamping distance: 50 to 500mm, digital setting
7. Pre-tension: 0 to 150cN tension scale
8. Dimensions: 520×400×1600mm
9. Weight: 73kg
10. Power supply: AC220V 50Hz 250W
YG029C Fully automatic single yarn strength tester is used for fully automatic determination of breaking strength, elongation at break, elongation at break, breaking strength, fracture work, fracture time and CV value of single yarns such as cotton, wool, silk and chemical fiber.
English LCD display. The test action process, the collection and processing of test data, and the printing of test test reports have been fully automated. Easy to use and labor-saving, stable and reliable performance. It is a high-tech, fully automatic, mechatronic test instrument.
Main technical parameters
| Detection principle | CRE |
| Measuring range and error | 20 ~ 5000cN, error ≤ ± 1% |
| Sensitivity | ≤ 1cN |
4. Sample range: clamping length 100-500 (mm); error ≤ ± 1mm
5. Large extension: 750mm (when the clamping length is 100mm); 350mm (when the clamping length is 500mm)
6. Stretching speed and precision: 20 ~ 5000mm / min, ± 2%, infinitely adjustable
7. Interval sampling length: 0 ~ 7.2m / 9 levels optional (each level is 0.8m)
8. Test capacity: ≤1000 times (5 boards / 100 tubes)
9. Clamping method: pneumatic (air source requires 0.55 ~ 0.8Mpa)
10. Output method: Chinese LCD interface display, printer printing, support online communication
11. Overall dimensions: 720 × 690 × 1470mm (without creel)
12. Power supply voltage: AC220V ± 10%, 400W
13. Temperature and humidity environment: temperature 20 ± 10 ℃; relative humidity 60 ± 15% RH
Output items and indicators
Index: tube number, frequency, breaking strength, breaking strength, breaking elongation, breaking time, breaking work, breaking elongation, constant force elongation, constant force, large value small value, average value, various CV values
Applicable standards: GB/T3916 "Determination of breaking strength and elongation at break of single yarn"
ISO 2062 "Method for determining the breaking load and elongation at break of a single yarn".
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
