| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | Y175A Y175D |
| Minimum Order Quantity: | 1 set |
| Price: | USD1000-3000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Measuring Range: | 2.5~6.5 Micronaire Units | Accuracy: | ±0.1 Micronaire Unit |
|---|

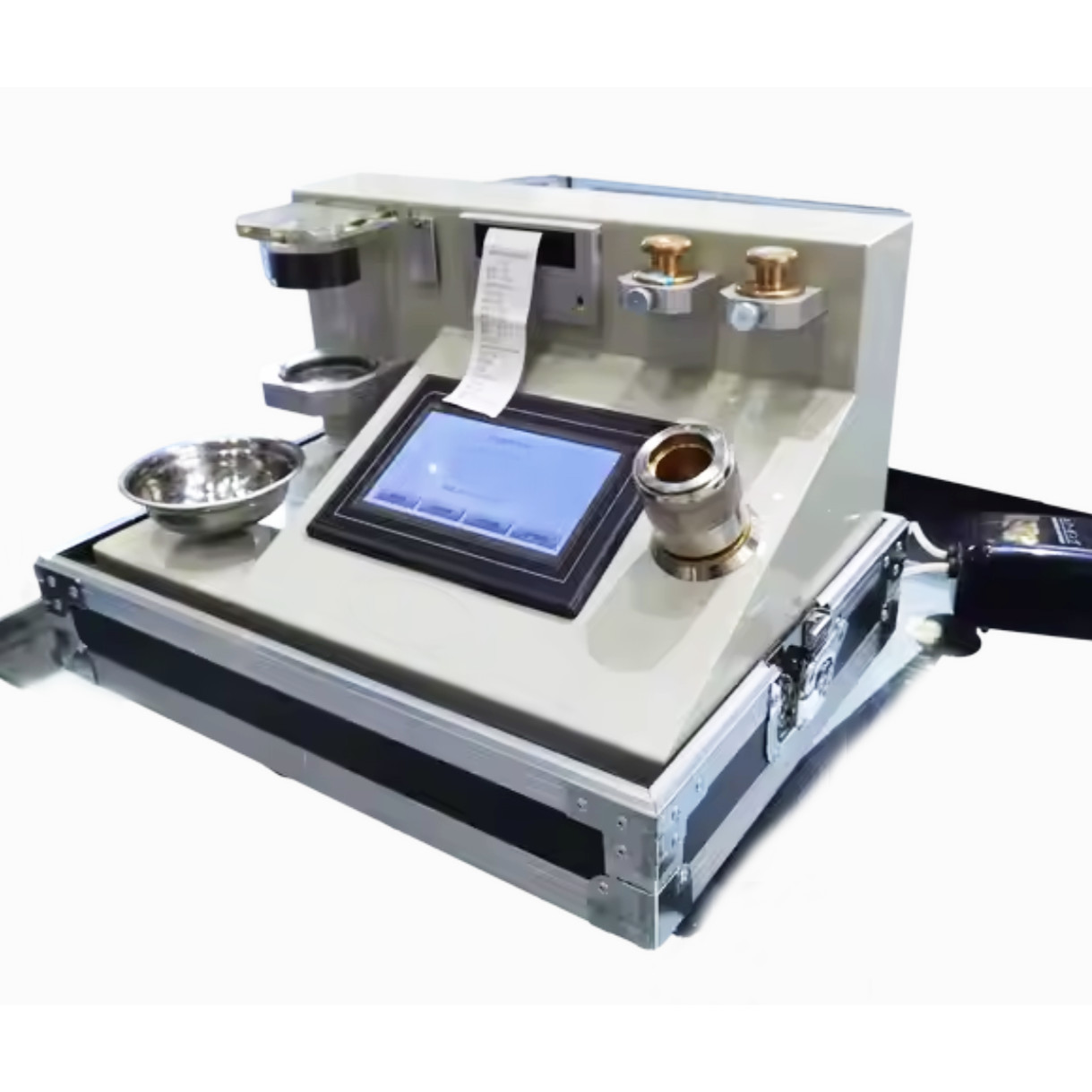

Y175A Digital Cotton Fibre Micronaire Fineness Tester
Used for testing cotton fiber’s micronaire value
Applicable standards: GB1103, GB/T6498, GB/T13778, ISO2403, BS3181, ASTM D1448
Main specifications and technical parameters:
Measuring range: 2.5~7.0 Micronaire value;
Resolution: ±0.01 Micronaire value;
Accuracy: ±0.03
Sample weight: 10g±0.2%
Power supply: AC220V ±10% 50Hz;
Volume: 360mm*300mm*300mm
Electronic weighing, automatically displays micronaire value, micronaire grade, metric count, and can automatically count
Main micronaire grade, percentage of each grade, average micronaire value and percentage of each grade.
It has the function of automatic calibration of standard cotton sample software and can be used at normal temperature

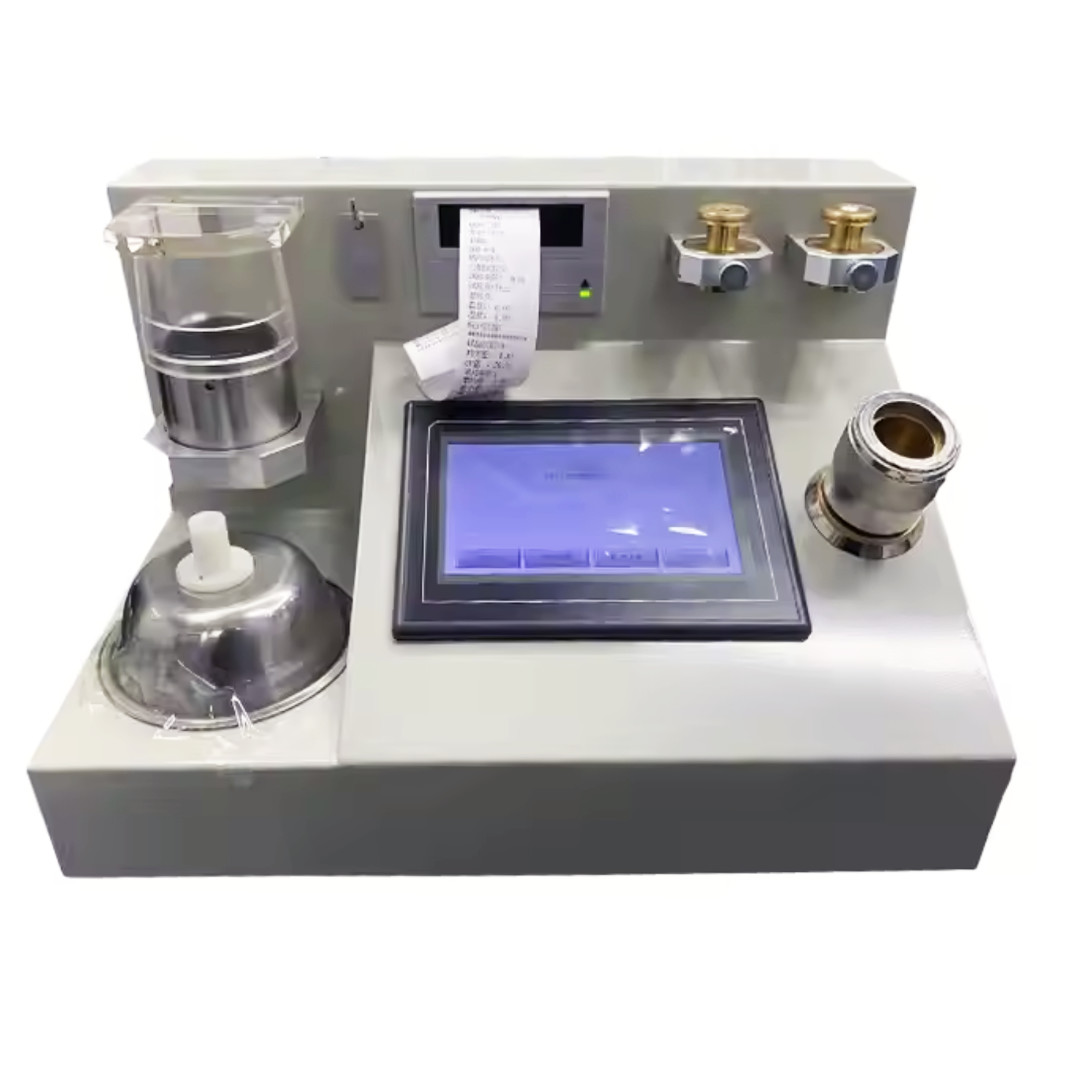

Y175D Digital Cotton Fibre Micronaire Fineness Tester is used for testing cotton fiber’s micronaire value.
The definition of micronaire is: a measure of the air permeability of a certain amount of cotton fiber under specified conditions, expressed in micronaire. The micronaire scale is based on a set of "International Calibrated Cotton Standards" whose micronaire values have been determined by international agreement.
| Implementation Standards | GB1103,GB/T6498,GB/T13778,ISO2403,BS3181,ASTM D1448 |
Main Technical Parameters:
1. The sample mass is based on 8g, and the microcomputer automatically corrects the micronaire value within the range of 7.5 to 8.5g.
2. Weighing accuracy: ±0.01g.
3. Bulk weight: 0.26g/cm2
4. Measuring range: 2.5~6.5 micronaire units. Accuracy: ±0.1 micronaire unit.
5. Usage environment: 5℃~40℃, relative humidity below 90%.
6. Power supply: 220V±10%, 50Hz.
7. Appearance: 470mm*315mm*305mm.
8. It adopts electronic weighing, micro air pressure sensor, large touch screen Chinese and English display and microcomputer automatic control and data processing. It comes with a micro printer, and can also be connected to an external parallel port 24-bit dot matrix printer, which can display the micronaire value and micronaire grade. The machine has functions of weighing and automatic correction of standard cotton samples, which improves detection speed and accuracy.
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
