| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | SW-12B/E |
| Minimum Order Quantity: | 1 set |
| Price: | USD3000-6000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Cup Numbers: | 4, 6, 12, 24pcs | Cup Size: | (GB)550ml,(AATCC)1200ml |
|---|

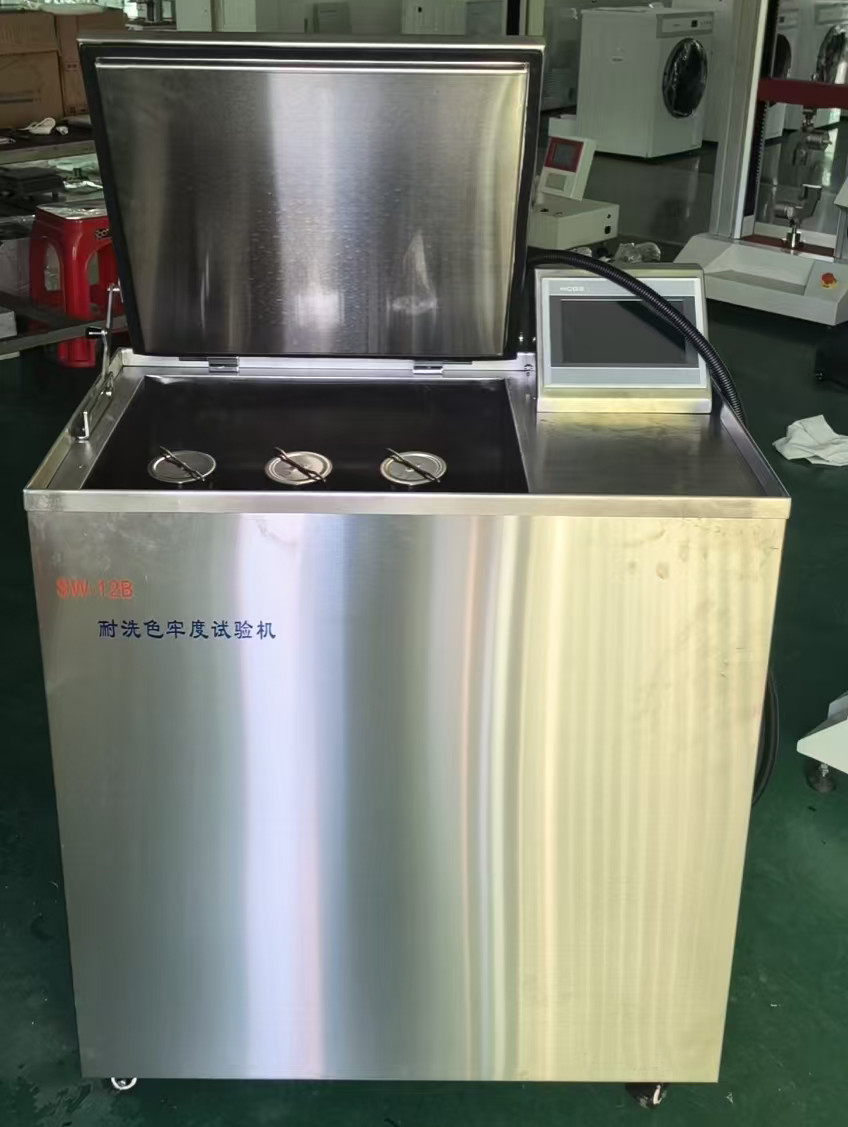

ISO105-C10 AATCC61 Laboratory Textile Fabric Color Fastness To Washing Tester/Testing Equipment/ Washing Testing Machine
[Scope]:
It is suitable for all kinds of textiles, washing, dry cleaning, shrinking fastness test, and can also be used to test dye fastness performance test.
[Standards]:
GB/T3921.1-5, ISO105-C10, GB5711, GB/T12490, JIS L0860, JIS L0844, AATCC61
[Instrument Features]:
1. The inner and outer cabinets are all made of 304 stainless steel, which is beautiful and durable.
2, using industrial color touch screen display control, durable, easy to operate.
3. The transmission structure adopts all-aluminum reducer and synchronous belt pulley. It has no noise and the speed is accurate and stable. The bearing is installed outside the box and will not be vulnerable to scaling due to long-term immersion in water. It is durable.
4. Built-in 5 sets of national standard procedures, and set aside 3 sets of freely editable experimental procedures to meet more testing and research needs.
5. The real-time curve of the experimental state data shows that the temperature change is better observed.
6. Temperature control adopts PID algorithm with small fluctuation, effectively preventing temperature overshoot; including temperature calibration function, it can well avoid sensor deviation caused by long-term use.
7. Door status switch detection device, the motor stops rotating when the door is opened to prevent hot water burns.

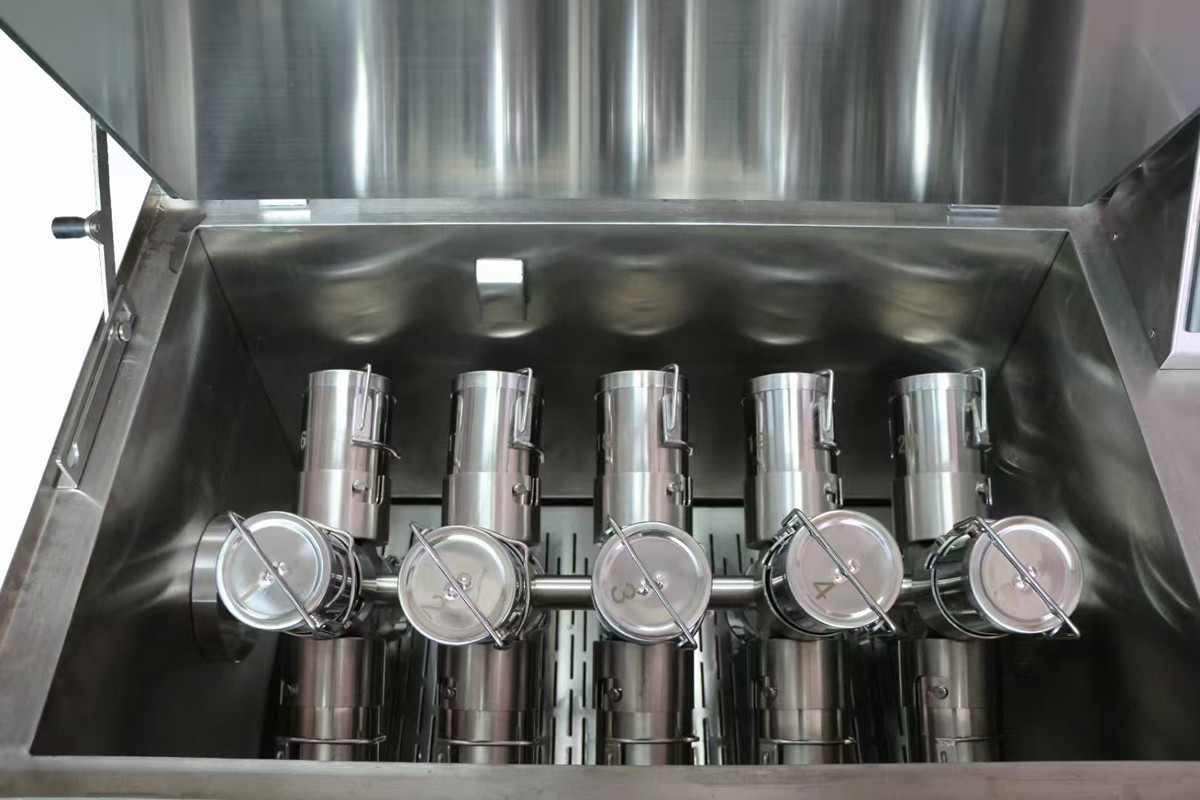

8. The national standard and American standard test cups can be installed separately or at the same time.
[Technical Parameters]:
1. Rotation speed: 40±2r/min
2. Test cup size:
| GB national standard /ISO standard | 550mL |
| American standard | 1200mL |
3. Number of test cups: (national standard) 12, (American standard) 6 (optional)
4. Timing range: 1~999min
5. Setting temperature range: room temperature to 99°C
6. Temperature control fluctuation: <±1°C
7. Heating method: electric heating tube
8. Instrument placement: foot pulley type
9. Dimensions: 800×580×1000mm
10. Weight: 110kg
11. Power supply: AC380V 50Hz 5KW (AC220V 50Hz 5KW can be customized)
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
