| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | YG812H |
| Minimum Order Quantity: | 1 set |
| Price: | USD5000-15000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Test Standards: | ASTM D751, AATCC 127, DIN 53886 | Test Units: | Pa, Kpa, MmHg, CmH2O |
|---|

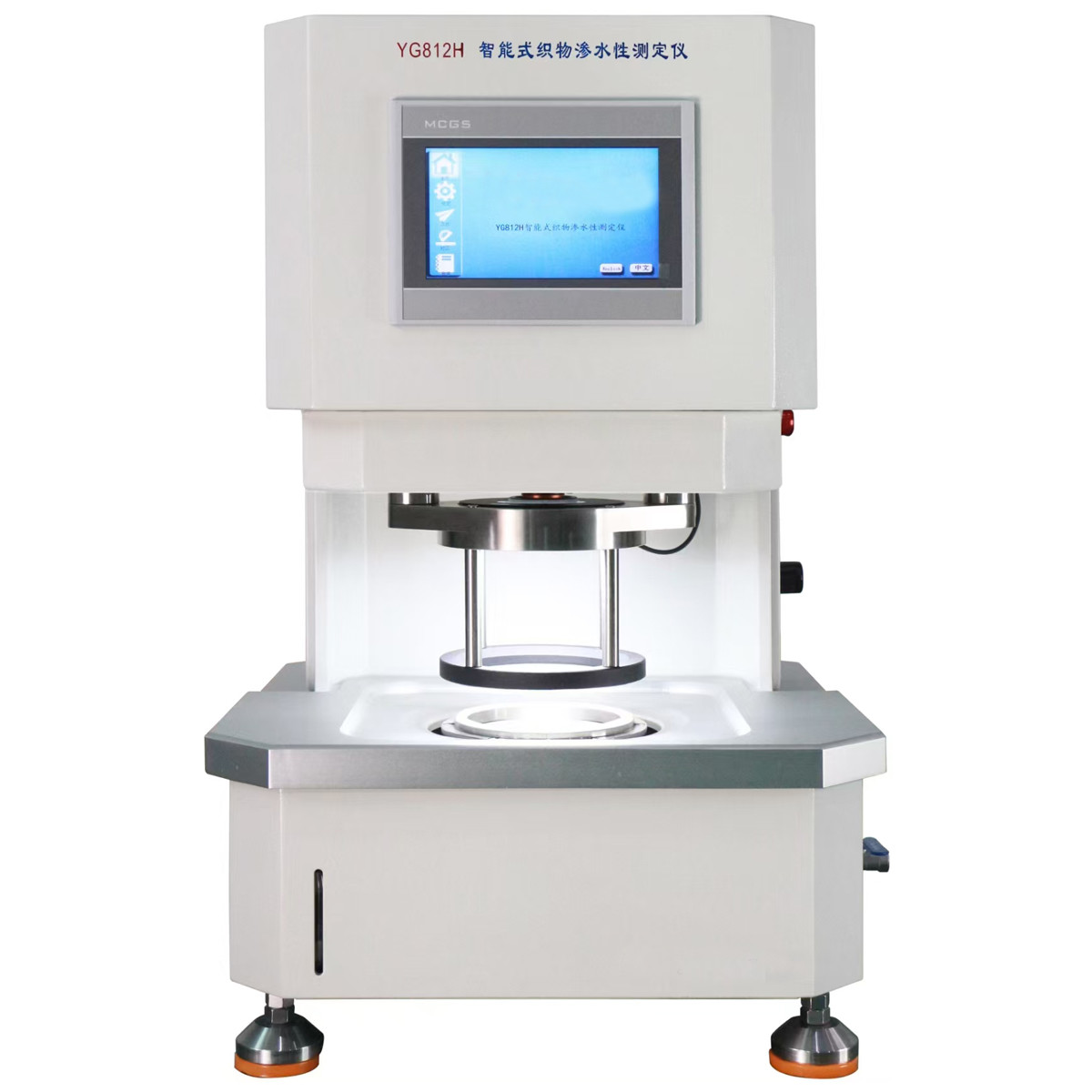

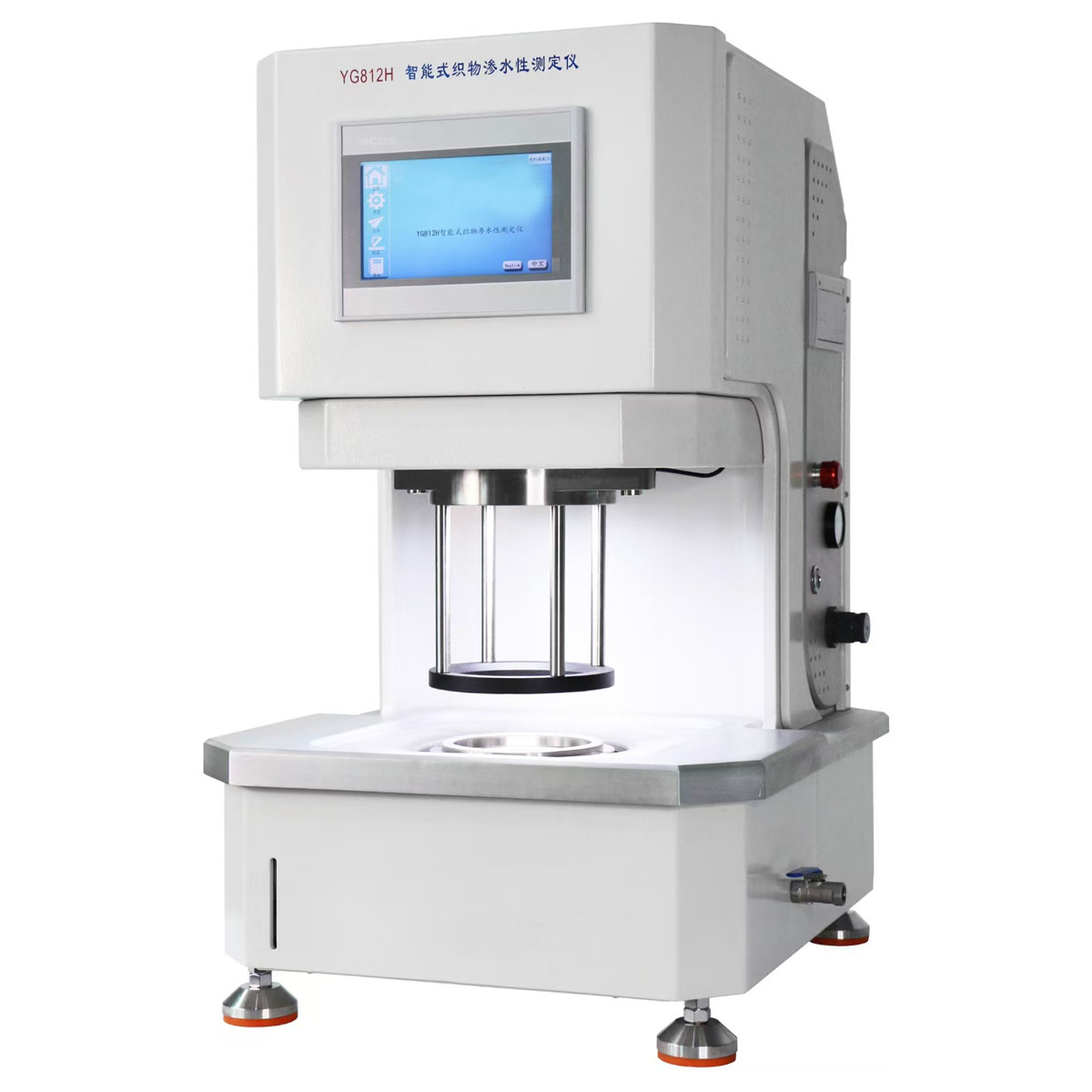

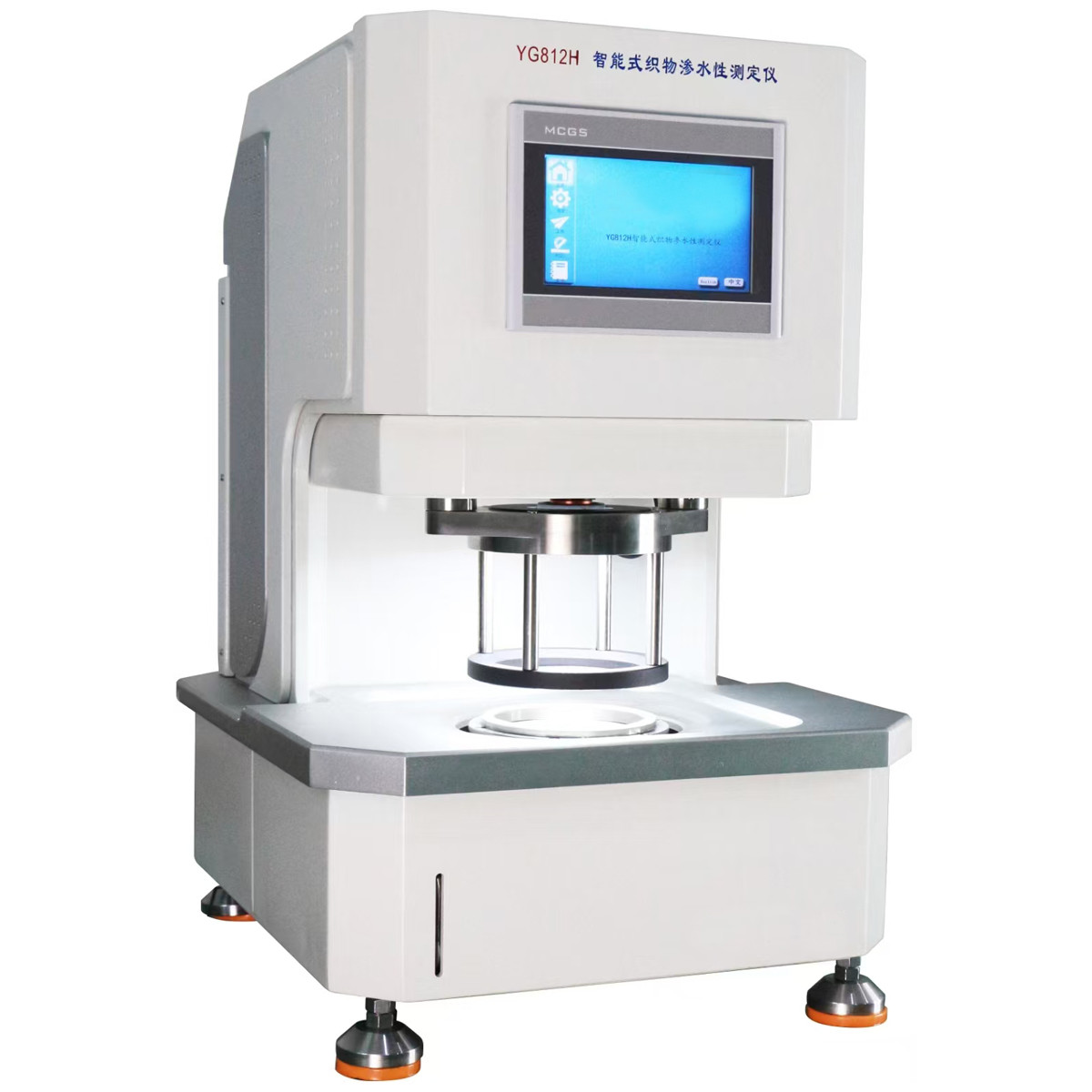

YG812H Digital Automatic Hydrostatic Pressure Head Tester is used to measure the water resistance of various fabrics (such as coated fabrics, tent fabrics, non-woven fabrics, membrane materials, rainproof clothing fabrics and geotextile materials, etc.) that have undergone waterproof treatment.
It complies with GB/T 4744,ISO811,AATCC 127,DIN 53886,JIS L 1092.
Characteristic

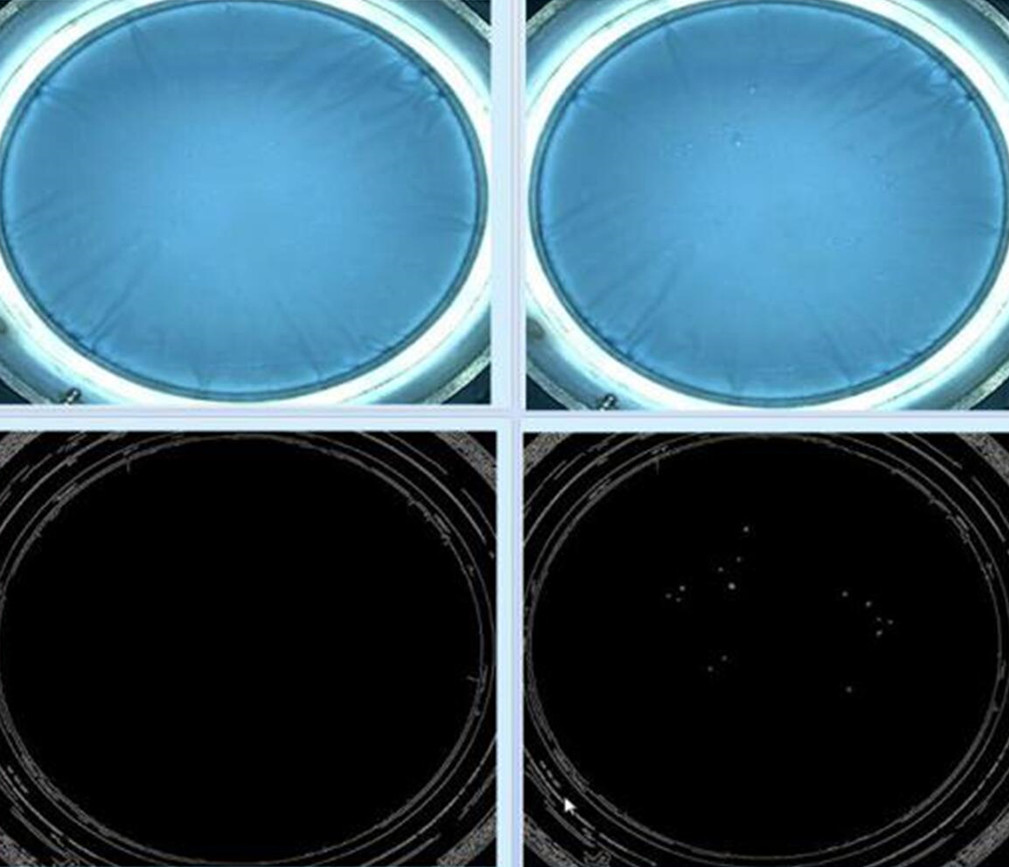

1. Using industrial camera imaging, automatic recognition of water droplets, automatic recognition of test results, avoiding manual recognition errors, and realizing automatic rating functions.
2. Driven by a servo motor, the water flow is controlled by a microcomputer, the pressurization rate range is wide and stepless adjustable, and the pressurization rate is accurate.
3. Imported high-precision pressure sensor is adopted, the sensor is automatically overloaded, and the pressure control adopts dynamic feedback adjustment to effectively prevent pressure overshoot.
4. Pneumatically clamp the sample, which is convenient and quick, so that the sample is evenly stressed and prevents the sample from being damaged.
5. Five test modes are optional, pressurization method, constant pressure timing method, constant pressure timing method, deflection relaxation and water seepage and leakage method.
6. Seven test units can be switched freely: Pa, kPa, mmHg, mmH2O, cmH2O, PSI, Bar.
7. The built-in professional LED lighting device is convenient for observing water drops; it is also equipped with a special water drop recording button; it can record the pressure results of water drops for many times.
8. With the automatic identification of sample rupture during the experiment, stop and record the experimental value.
9. The workbench panel and all places in contact with water are all made of stainless steel.
Technical indicator
1. Main technical indicators:
| Model | Test range | Accuracy | Water pressure increasing rate | Test head area |
| -5 | 500pa-50kpa | 0.2%F.S | (1~100)kPa/min | 100cm2 |
| -20 | 500pa-200kpa | (1~100)kPa/min | ||
| -50 | 5kpa-500kpa | (1~100)kPa/min | 7.8cm2(Optional) |
-100 model customized
2. Pressure display resolution: 0.01kPa
3. Sensor test accuracy: ≤1% (5% to 100% within the full range of a single sensor)
4. Experimental area: 100cm², 7.8cm² (optional)
5. Pressurization rate: 1kPa~100kPa/min (stepless adjustable)
6. Working mode: supercharging method, constant pressure timing, constant pressure timing, water seepage and leakage, deflection experiment
7. Display mode: Color screen in English, computer operation
8. Dimensions: 500×440×780mm
9. Weight: 70kg
10. Power supply: AC220V 50Hz 500W
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
