| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | YG141H |
| Minimum Order Quantity: | 1 set |
| Price: | USD1000-5000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Accuracy: | YG141H-1 (0.01mm); YG141H-2 (0.001mm) | Measuring Range: | 25mm, 50mm Optional |
|---|

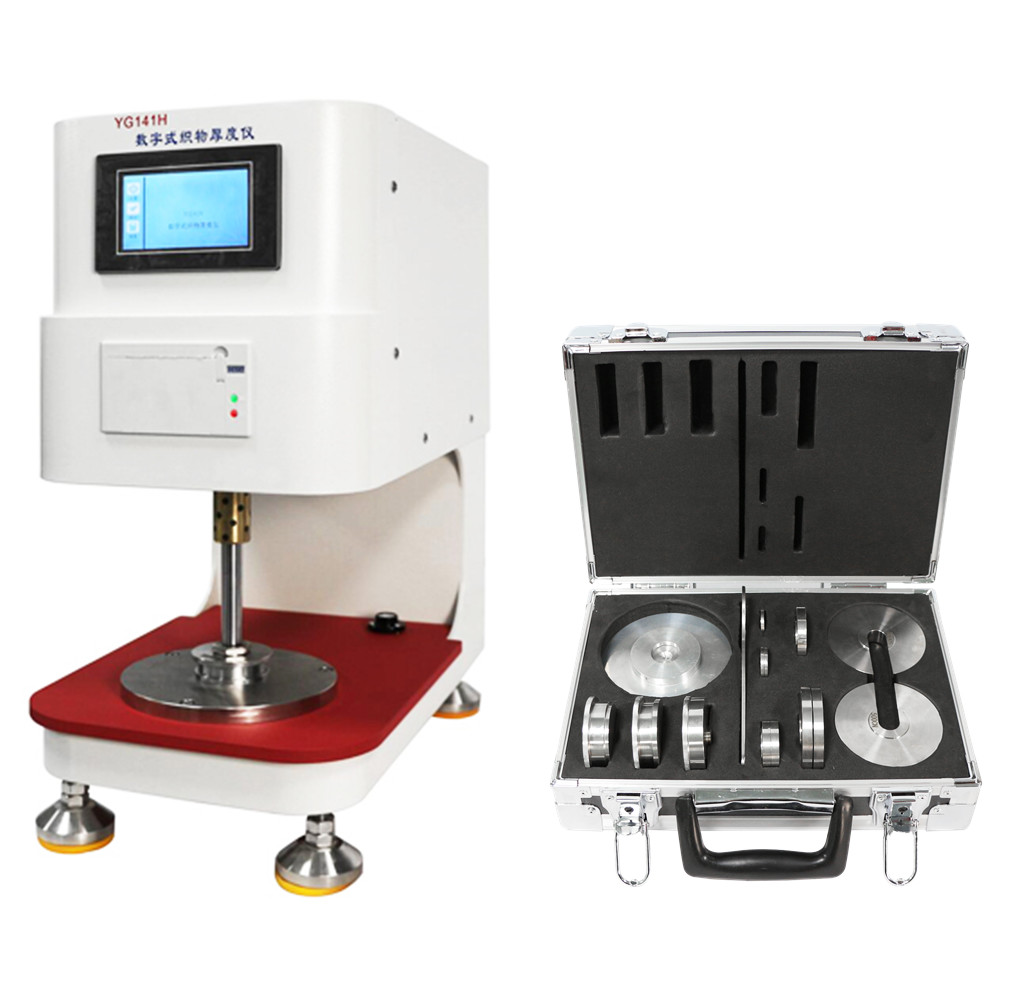

It is used for thickness measurement of various materials such as textiles, textile products, non-woven fabrics, etc. under different pressures. It can also be used for thickness measurement of other uniform thin materials.
[Test standards]
GB/T 3820, GB/T 24218.2 ISO 9073 - 2
[Instrument characteristics]

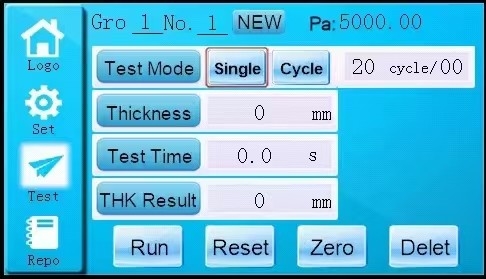

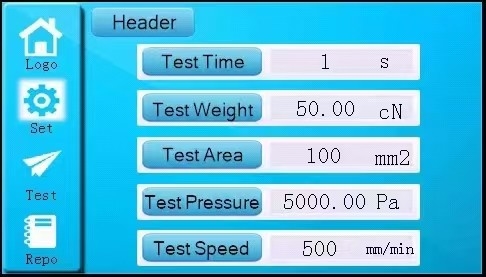

1. Touch screen control, Chinese and English menus, human-computer dialogue mode, easy operation.
2. Built-in thermal printer, convenient for quick printing of test results on site.
3. Cam connecting rod transmission mechanism to complete the rising and falling movement of the instrument.
4. The instrument uses its own power supply method, no need to replace batteries.
5. Test mode: single and continuous.
6. The self-balancing presser foot is used to ensure test accuracy and repeatability.
7. The test pressure is automatically converted and displayed without manual calculation.
[Technical parameters]
1. Measuring range: 25mm, 50mm optional
2. Accuracy: YG141H-1 (0.01mm); YG141H-2 (0.001mm)
3. Diameter and area of presser foot: φ11.28mm, φ50.48mm, φ56.42mm, φ112.84mm;
100mm2 2000mm2 2500mm2 10000mm2
4. Pressure weights: 5cN, 10cN, 50cN, 100cN, 200cN, 500cN, 6 types in total.
Weights quantity
5cN weight, 1 piece
10cN weight, 2 pieces
50cN weight, 2 pieces
100cN weight, 1 piece
200cN weight, 2 pieces
500cN weight, 2 pcs
5. Weight time: 1~999s can be set
6. Test data can be stored in 30 groups, each group contains 50 test results
6. Dimensions: 250×450×460mm
7. Weight: 35kg
8. Power supply: AC220V 50Hz 100W
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
