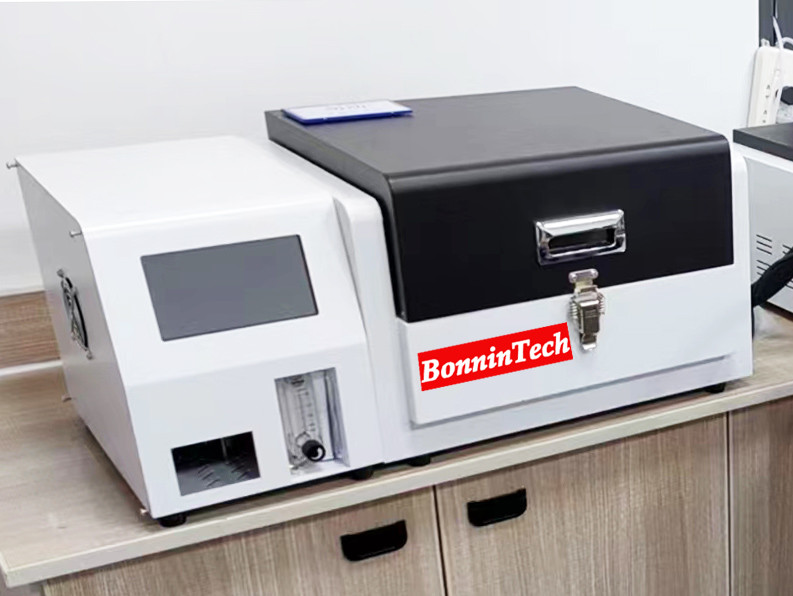

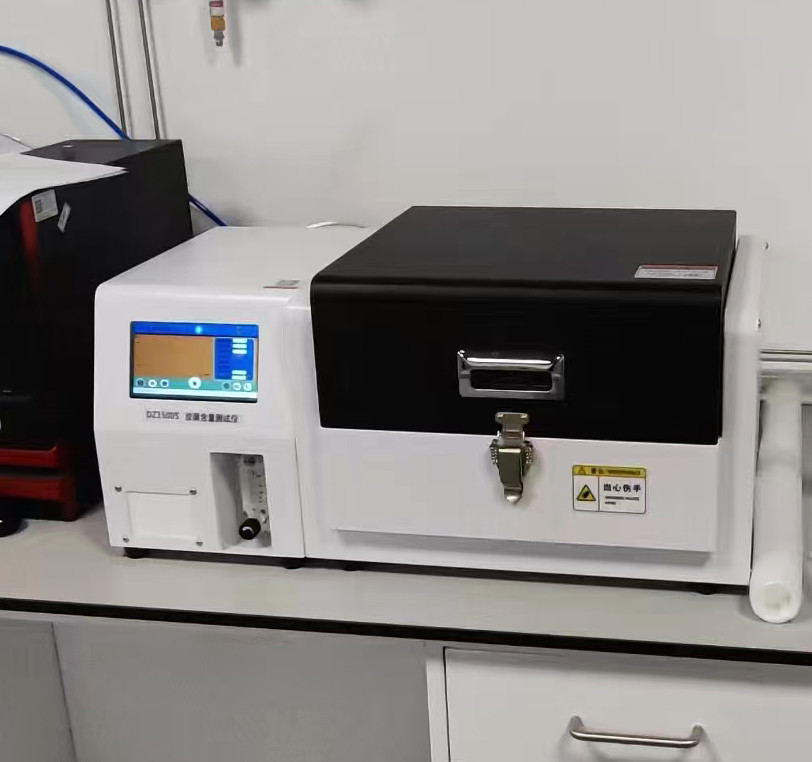

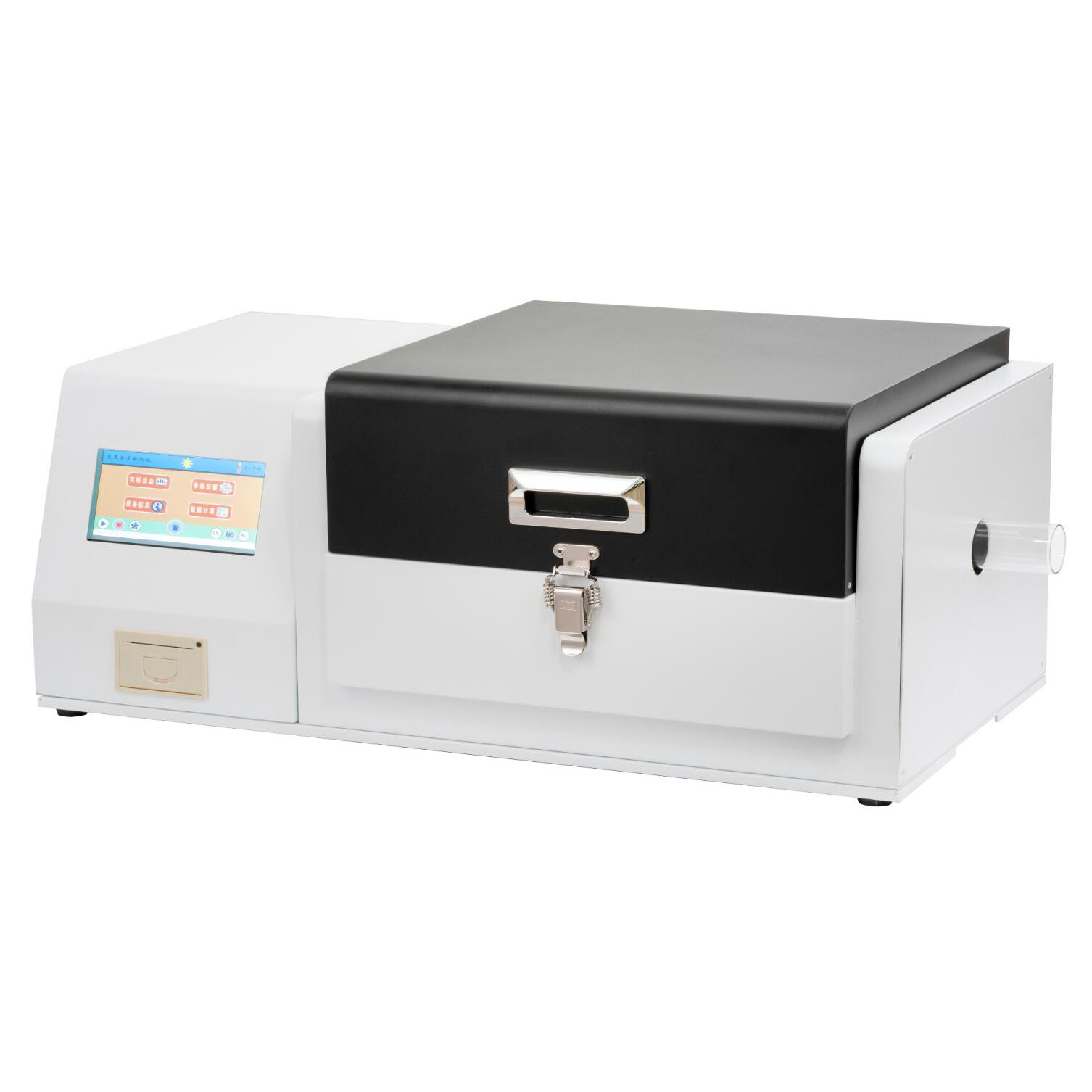

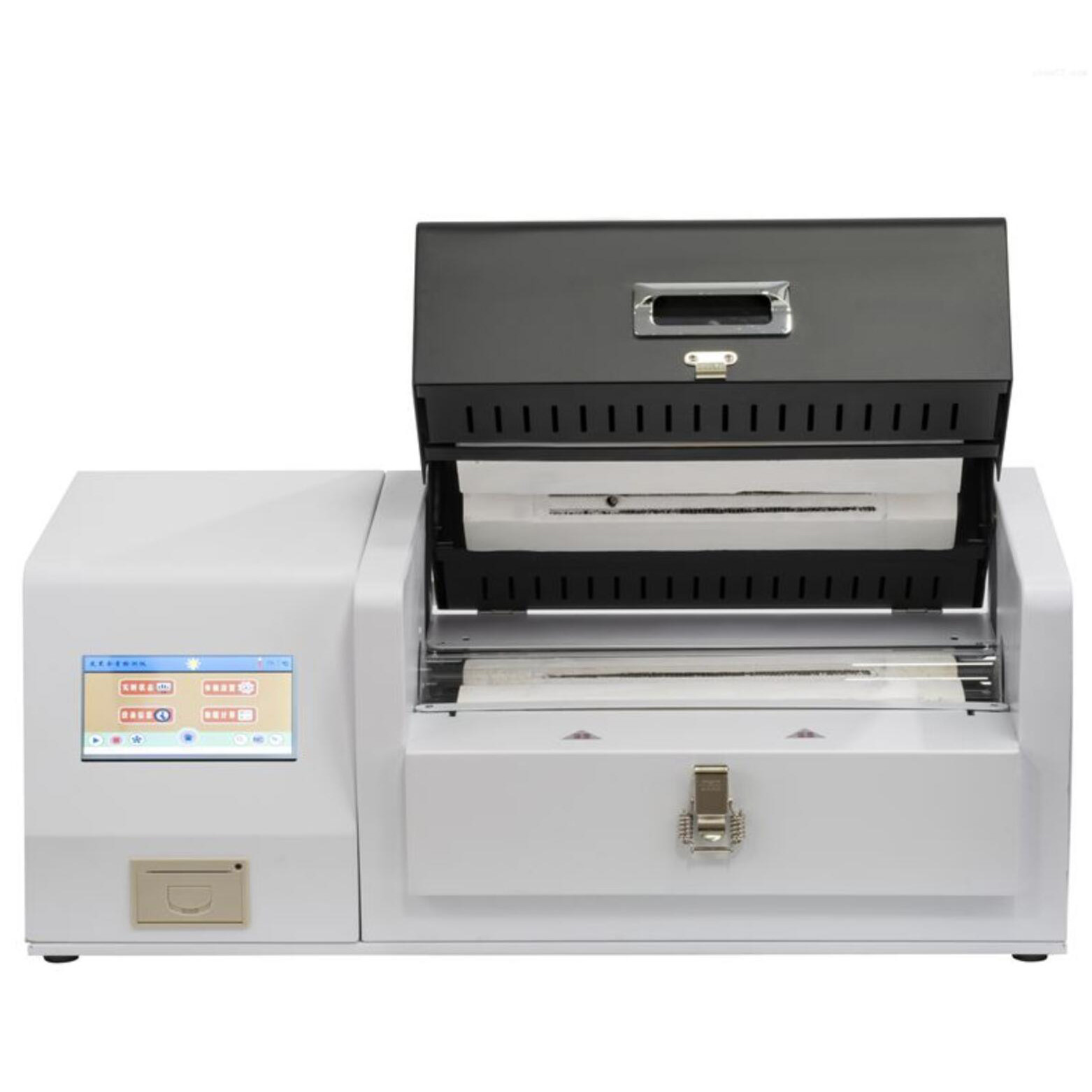

ISO6964 ASTMD1603 DZ-3500S Carbon Black Content Tester for Plastic

ISO6964 ASTMD1603 Plastic Carbon Black Content Tester, DZ-3500S Carbon Black Content Analyzer

This carbon black content tester is suitable for the determination of carbon black content in polyethylene, polypropylene, polybutene plastics, cable and optical cable insulation and sheath materials, and rubber. Comply with national standards ISO 6964, ASTM D1603, GBT 3515-2005, GBT 13021-1991, GB/T2951.41-2008, IEC60811-4-1:2004, etc. A certain amount of sample is pyrolyzed in a nitrogen flow at high temperature, and the carbon black content is obtained by analyzing the weight of the sample after pyrolysis.

Technical Features:
1. The appearance and structure of the instrument are beautiful, and the operation is simple;
2. The integrated design of the heating furnace body and the control system is convenient for the user's instrument management;
3. High degree of automation, only need to set the temperature value and heating time, the instrument will automatically heat up to the set value;
4. High temperature control accuracy, wide temperature range and high furnace temperature uniformity;
5.8-inch LCD touch screen display, extremely friendly operation interface, can be started with one key operation;
6. It has a constant temperature function, and the constant temperature time can be set, and the constant temperature precision is high;
7. The instrument can set any group of different heating time periods, and can have different heating temperature, heating rate, and constant temperature time;
8. Parameter display is comprehensive, showing the number of set groups, theoretical temperature, actual temperature, heating time (or constant temperature time);
9. During the operation of the instrument, you can view the set parameters and the time for heating or constant temperature.

Technical Parameters:

1. Display mode: 8-inch capacitive touch screen
2. Quartz tube size: φ44×600±5mm
3. Furnace chamber size: Φ45×300±5mm
4. Heating element: high temperature alloy wire
5. Heating zone length: 250mm
6. Length of constant temperature zone: 220mm
7. Working temperature: room temperature~1050℃
8. Temperature control method: Intelligent programmable control, segmented program can be set.
9. Working power supply: AC220V/50HZ/60HZ
10. Sensor sensitivity: 0.1°C
11. Gas path control: two paths, automatic program switching.
12. Cooling method: rapid cooling (≤20min, 900°C to room temperature)
13. Number of test samples: 4 samples are tested at a time.
14. Data calculation: The software has its own calculation function, one-key calculation; it can automatically calculate the carbon black content and ash content.
15. Exhaust gas collection device, filter device (not standard, optional).
16. Customized rail-type sample rack, easy to take and set out.

FAQ 1. Are you a factory or trading company?

We are a factory.

FAQ 2. Can you supply OEM?

OEM is available.

FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.

FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
