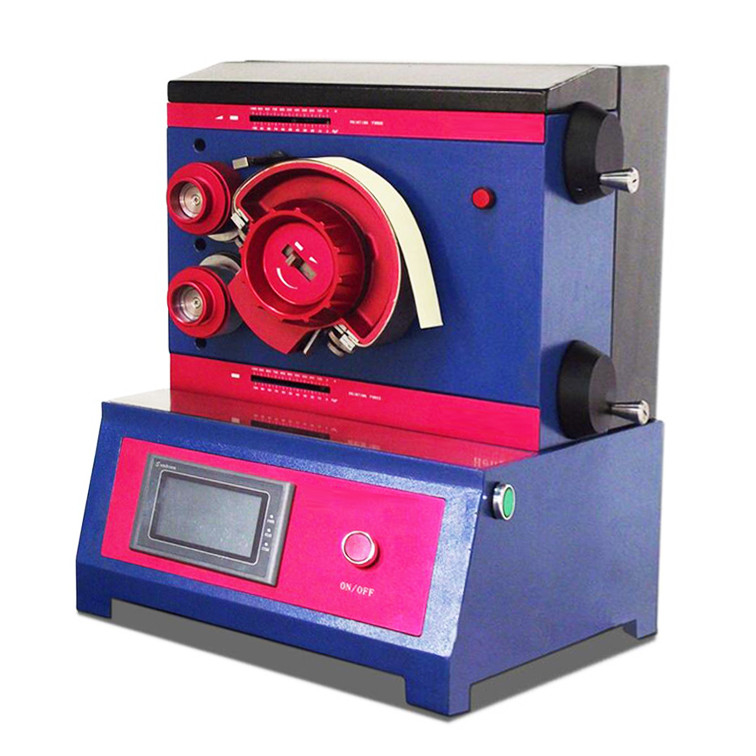

IGT Offset Printing Ink Printability Picking Tester Testing Machine

IGT-PICK IGT Ink Printing Offset Printability Tester:

The sample printed by the printing adaptability tester is suitable for many purposes, such as:
1. Measure color with a color measurement system or spectrophotometer
2. Suitable for color matching
3. Visual assessment
4. Density measurement: including establishing tolerances
5. Determine the ink coverage, abrasion resistance, scratch resistance, flexibility, adhesion fastness and gloss, ink transfer rate (in g / m2), light resistance
And chemical resistance.
6.Test printing quality, brushing / wet brushing / wet repellency, printing penetration, Helio test, smearing, through-printing, ink stains, paper surface loose matter test
7. Suitable for various materials: paper, cardboard, plastic film, cellophane, laminated composites, metal products, etc.

Suitable for the following industries:
1. Printing ink, paper and cardboard, printing house
2. Metal, plastic products and various packaging
3. Resin, paint and coating industry
4. Raw materials

GB / T22365-2008 "Determination of paper and board printing surface strength"
ISO3783-2006 "Paper and paperboard-Determination of burrs"
QB / T 1020-2010 "Standard Ink for Paper and Board Printing Suitability"

Instrument functions: spot color ribbon for color difference and density analysis, ink transfer rate, ink film thickness analysis, ink gloss analysis, ink wear resistance analysis.
Ink even method: automatic variable speed and pressure even ink (adjustable pressure, adjustable speed)
Printing pressure: 0-800N pressure adjustable, manual adjustment, printing pressure can be reasonably adjusted according to the thickness of the substrate
Uniform ink speed: speed is infinitely adjustable, 0-700r / min speed adjustment, printing speed can be adjusted according to the characteristics of ink and paper characteristics.
Color development speed: color development speed is adjustable, 0--100r / min is infinitely adjustable.
Printing roll width: 25mm, 50mm comes in two sizes
Effective area of color bar: 25 * 220mm, 50 * 220mm
Rubber roller: German imported rubber (VU70), the same material as the rubber roller of the printing press.

This instrument can achieve the following functions:
Ø Calculation of ink transfer volume
Ø Calculation of ink film thickness
Ø Detection of spot color aberration and spectral density
Ø Calculation of ink gloss
Ø Testing of ink film fastness

Technical parameters:
