| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | FPOSM-V2.0 |
| Minimum Order Quantity: | 1 set |
| Price: | USD5000-9000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Display: | Touch Screen | Measure Range: | 0~2000 MOsmol |
|---|---|---|---|
| Warranty Time: | 12 Months And Life-time Technical Support | Ambient Temperature: | 5-65℃ |

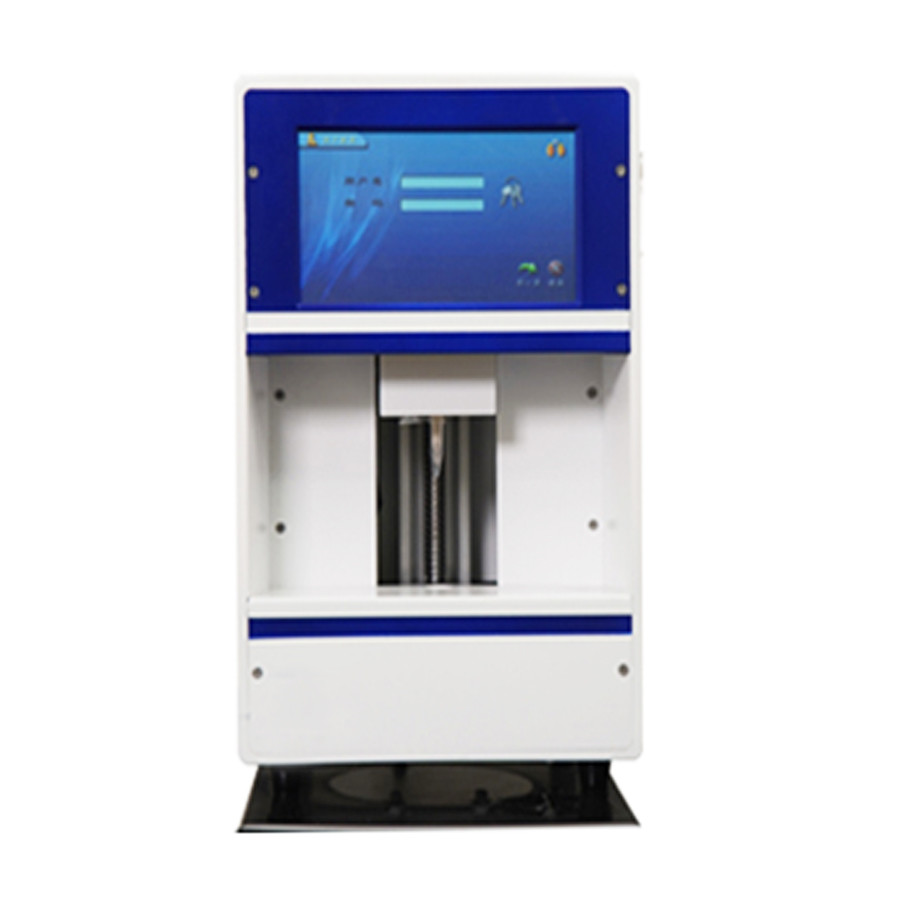

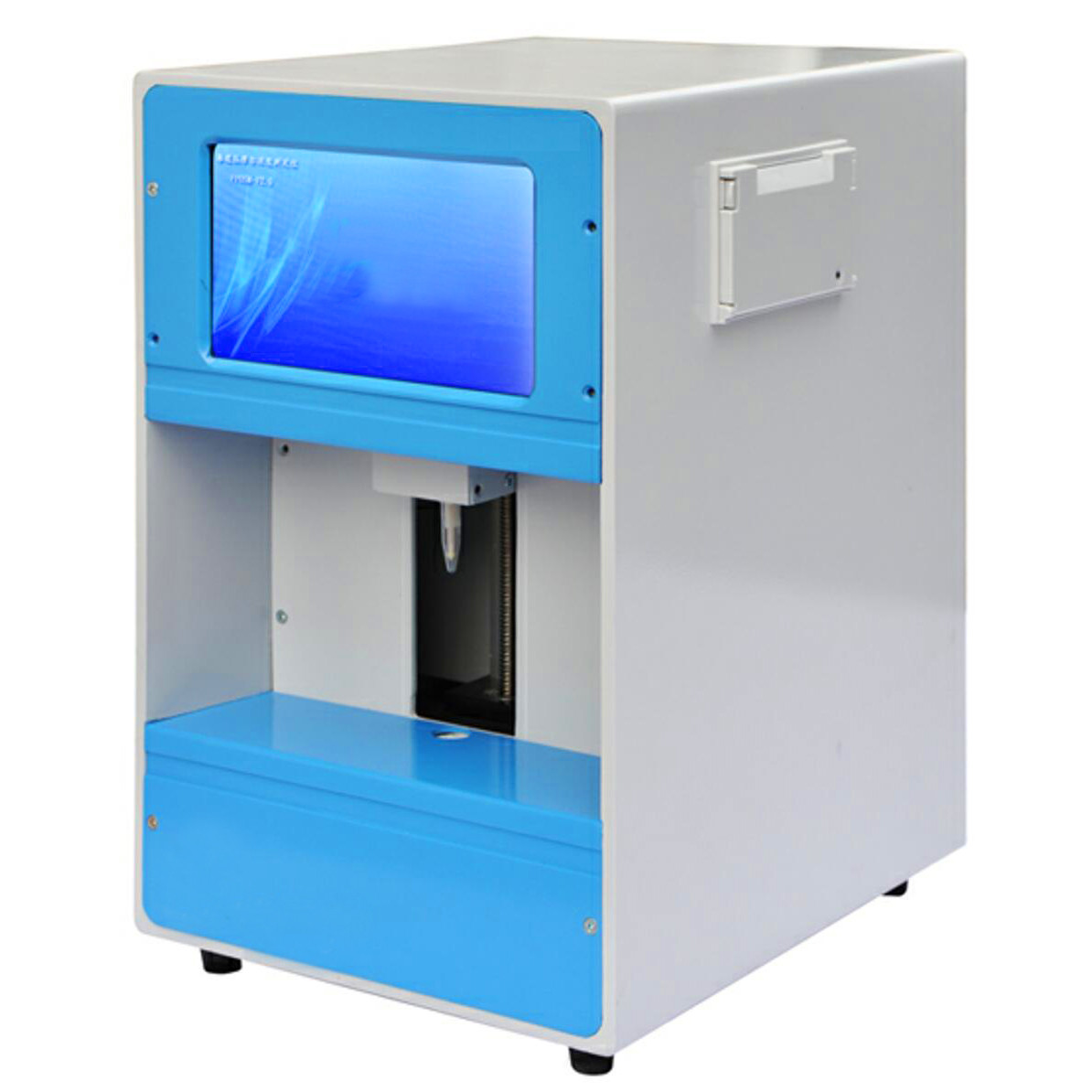

FPOSM-V2.0 Osmometry Instrument Freezing Point Depression Osmometer Freezing Point Osmometer
Introduction:
The freezing point osmometer FPOSM-V2.0 produced by our company with independent research and development is in accordance with Raoul freezing point theory, based on the solution freezing point declined value proportional to the solution molar concentration, using high sensitivity of temperature-sensing element, to measure the freezing point of different solutions, so as to derive the osmotic pressure molar concentration. This theory has been widely used for the test and research of osmotic pressure molar concentration in the fields such as pharmaceuticals, pharmaceutical analysis, biological and food therapy.
Features:
1. It has the functions of electronic signature and user classification management, to satisfy CFR PART21 store data query according to time which can store 3 years of testing data.
2. It can carry on single-point or multi-point (31-point) linear calibration, to ensure that the instrument has the detection accuracy of each range interval in stability.
3. Instrument adopts the screw linear guide motor design, so that the operation just on a touch screen can complete the whole test process.
4. Temperature probe adopts double refrigeration system, with a short pre-cooling time, fast detection speed, to facilitate continuous detection.
5. It can simultaneously display the osmotic pressure molar concentration value, the freezing point value and the molar concentration ratio.
6. The cooling system adopts the athermal transfer fluid design, to exempt from frequent maintenance.
7. Built-in pharmacopoeia hundreds of injectable drug name can facilitate the preset information of test sample.
Technical parameters:
| Measurement range | 0~2000 mOsmol |
| Sample amount | 100μl |
| Testing duration | ≤3min |
| Pre-cooling time | ≤3min |
| Measurement error | ≤1% |
| Repeatability | ≤1% |
| Linearity | ≤1% |
| Environment temperature | 0~30℃ Recommended for 15~25℃ |
| Environment temperature | ≤60% |
| Power supply | 220V~ 50Hz 150VA |
| Dimensions | 225mm*275mm*345mm |
| Weight | 15kg |
| Resolution ratio | 0.1 |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
