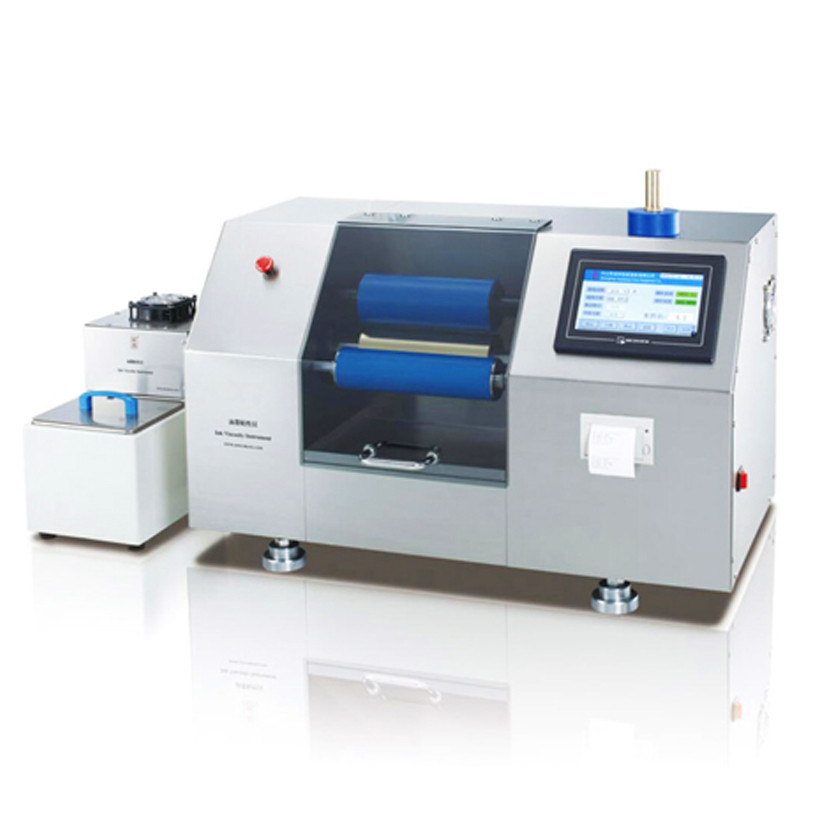

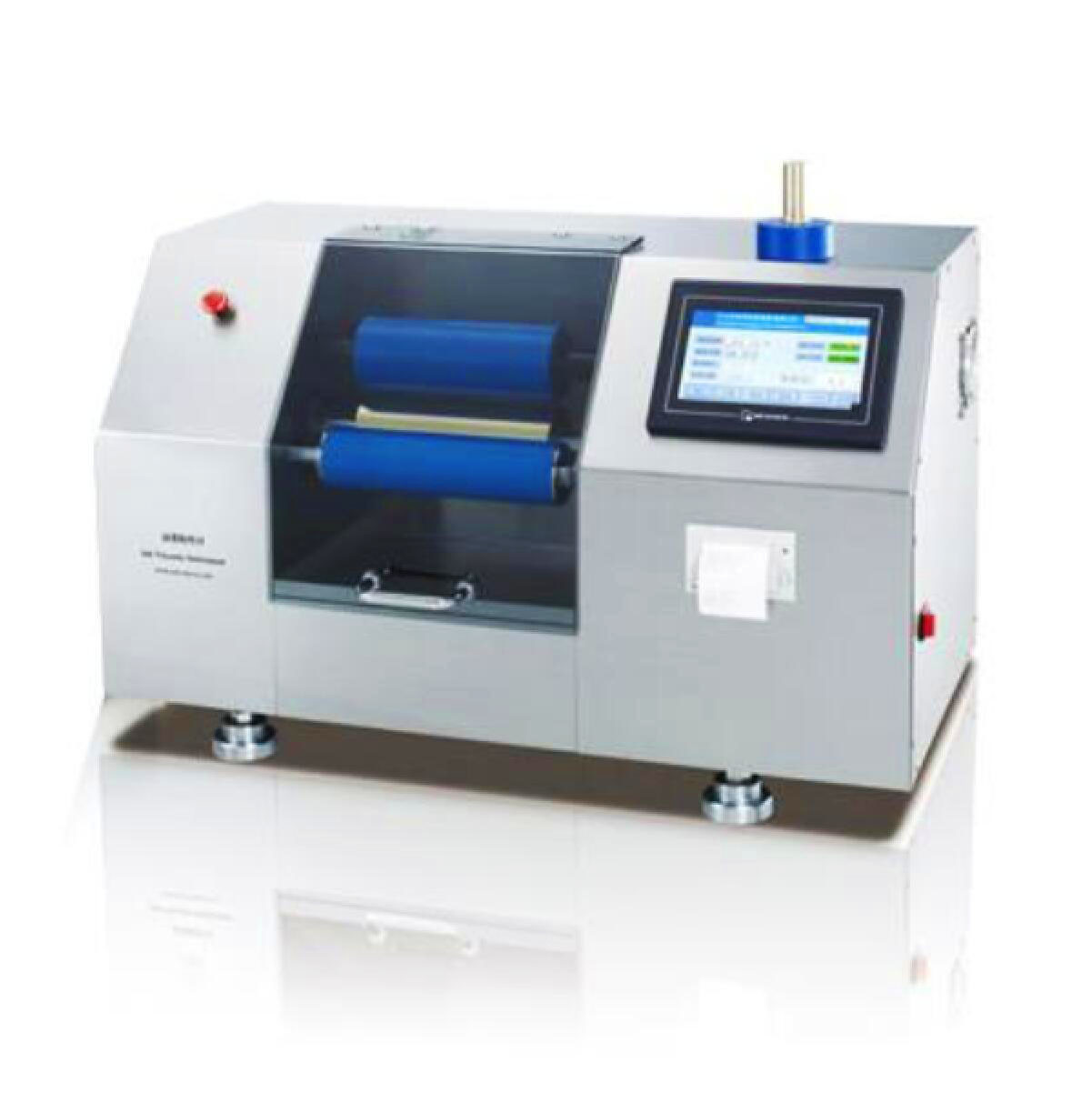

BN-IV-50T Digital Ink Viscosity Tack Tester Automatic Inkometer

BN-IV-50T Digital display Ink viscosity meter (Automatic inkometer, ink tack tester) mainly adopts the highest configuration of modern intelligent industrial control: PLC+touch screen+servo motor, which can clearly and accurately display the instantaneous copper roller revolutions and water tank temperature, and automatically adjust the test conditions that do not meet the requirements (the servo motor can guarantee speed does not exceed 1 revolution).

It ensures that the test conditions are stable under any circumstances, and the accuracy and repeatability of the detection ink viscosity value are guaranteed. The instrument is also equipped with a humanized design, which can be set for automatic measurement and manual measurement. The entire process does not need to be manually operated to test the clutch pressure of the roller and the ink distribution roller, and the instrument completes it automatically.

The instrument sensor and no-load calibration are simple, and the viscosity value can be calibrated to be consistent with the viscosity value of other brands of instruments.
The instrument can be extended to an external PC to read data (optional).

Technical Parameters:

Copper roller spindle revolutions: I gear--400 rpm, II gear--800 rpm, III gear--1200 rpm, IV gear--1600 rpm, V gear--2000 rpm
Plus self-determined speed (100--2000) rpm
Power supply voltage: 220V 50HZ
Total electrical power: 1600 watts (including 800 watts for the motor and 800 watts for the water tank)
The level error of the main shaft copper roller after leveling the workbench is 0.03mm
Standard single-heat constant temperature water tank temperature adjustment error ± 0.2 ℃
Hot and cold type ±0.1 ℃ (optional)
Display accuracy: 0.1 ink viscosity unit
Under the same test conditions, the retest error is ±0.3 for ordinary ink and ±0.5 for UV ink
Print: test time, serial number, temperature, speed, viscosity value, TV value of sending PC data
One standard easy-to-disassemble and easy-to-clean ink injector (standard capacity 1.32CC)
Instrument dimensions: 750x300x480mm
Total weight of the instrument: 130KG
Noise: less than 50 decibels

Viscometer constant temperature water tank technical parameters:
Input power: 220V 50HZ
Temperature range: -5 to 100 degrees
Inner tank volume: 6L
Temperature fluctuation: ±0.05℃
Digital display resolution: 0.01 degrees
Working tank size: 250×200×150mm
Opening slot size: 280×140mm
Dimensions: 520×380×470mm
Constant temperature method: heat pipe + compression refrigeration
Function: used for ink viscosity meter copper roller constant temperature accessories, suitable for use in environments greater than or close to the set constant temperature temperature.

FAQ 1. Are you a factory or trading company?

We are a factory.

FAQ 2. Can you supply OEM?

OEM is available.

FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.

FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
