| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | BN-8156A |
| Minimum Order Quantity: | 1 set |
| Price: | USD2000-6000/set |
| Packaging Details: | Standard export wooden box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Equipment: | Short Span Compression Strength Tester | Test Range: | 1 ~ 500 N (0.06 ~ 33.3 KN / M) |
|---|---|---|---|
| Compression Distance: | 0.3 ~ 0.7 Mm | Warranty: | 12 Month, Life-time Technical Support |

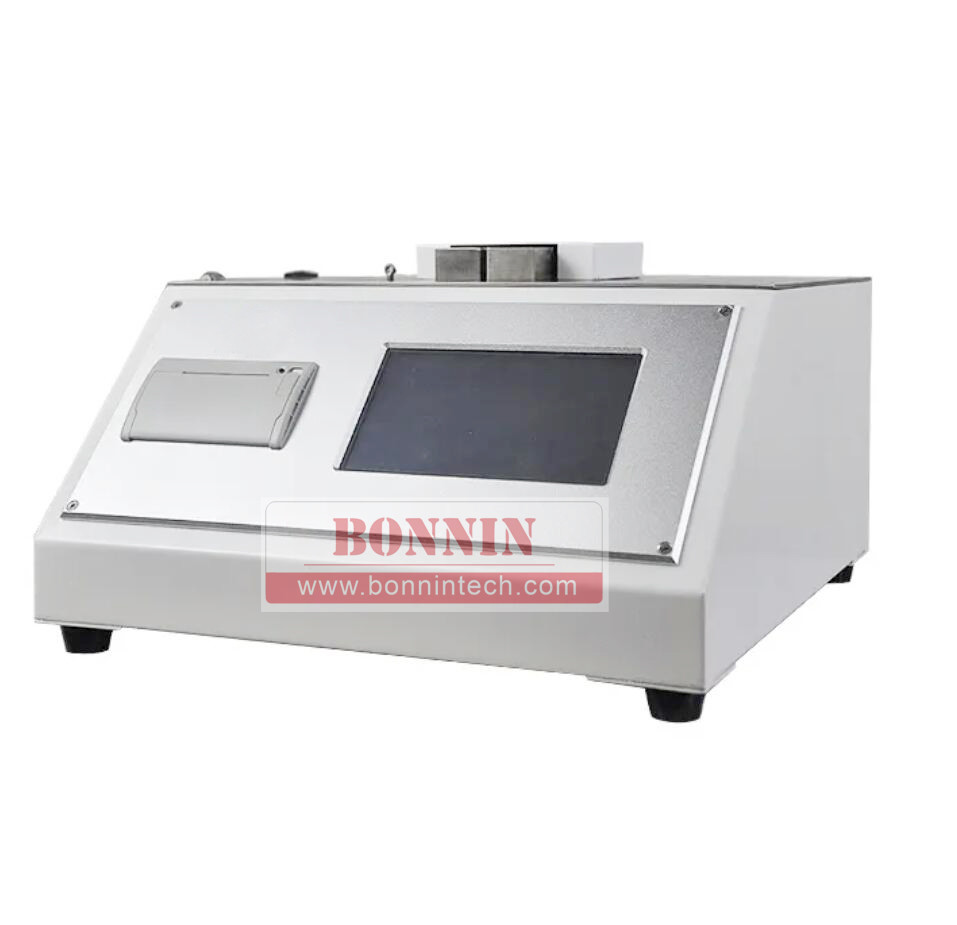

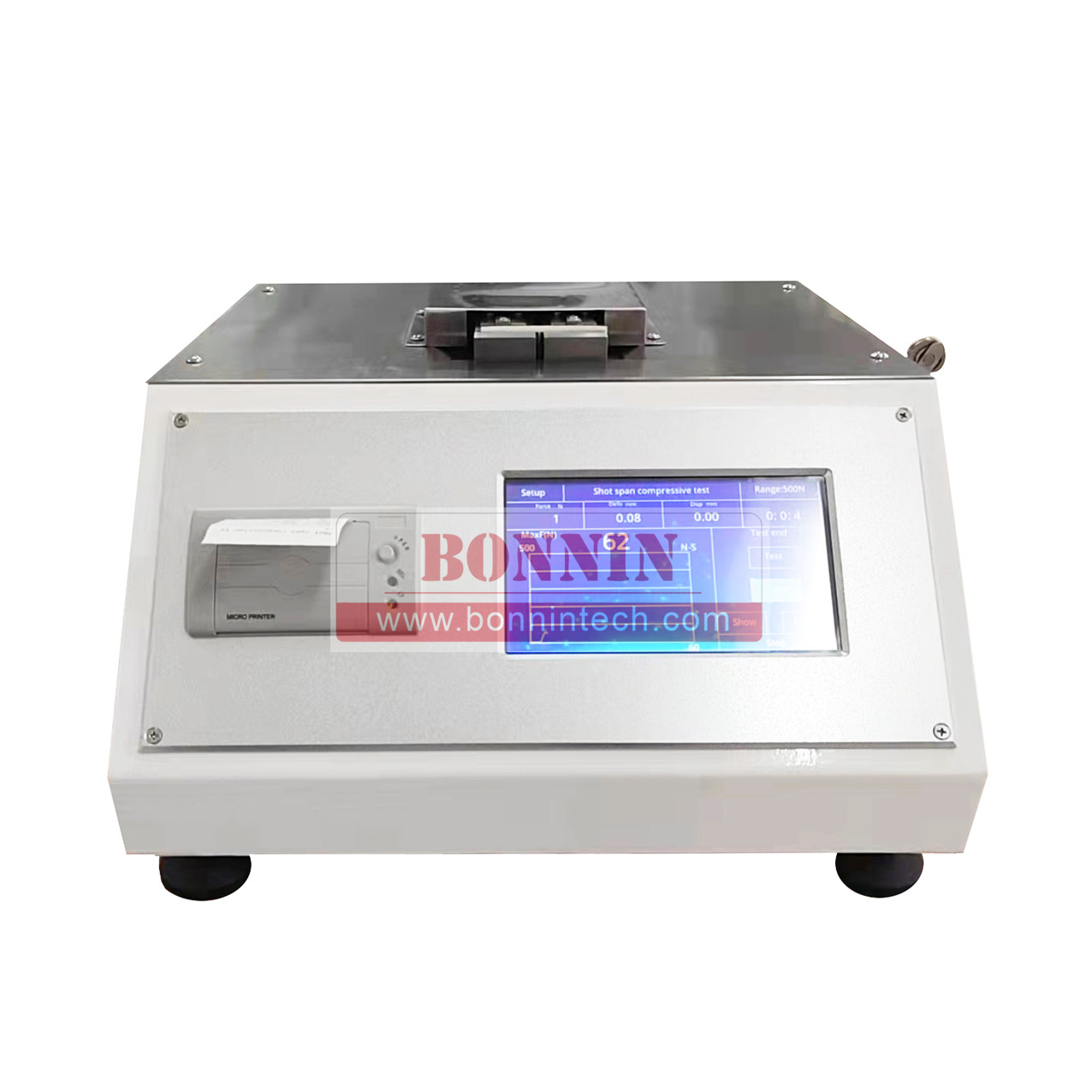

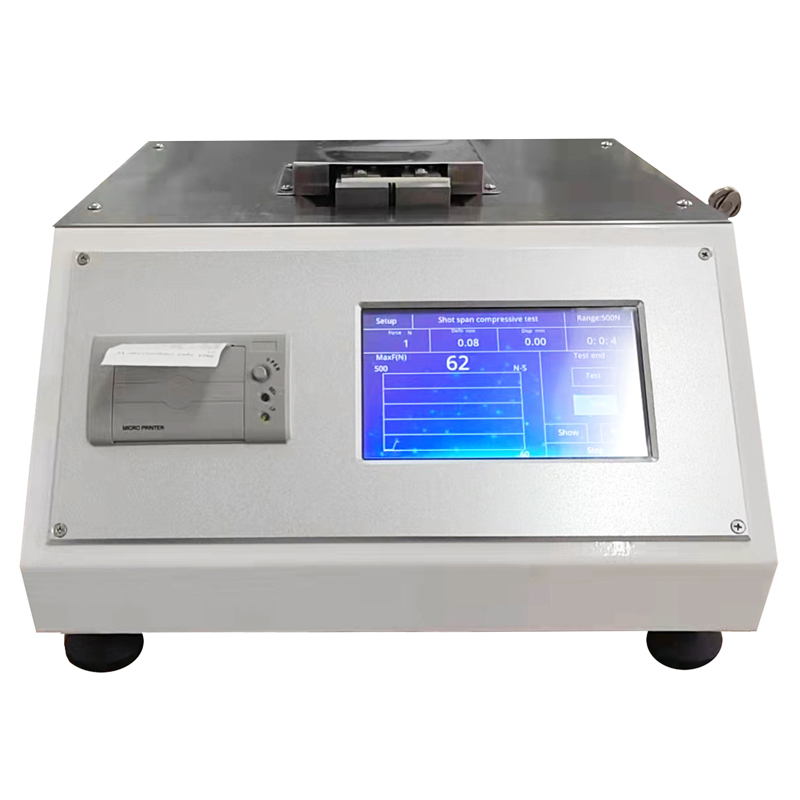

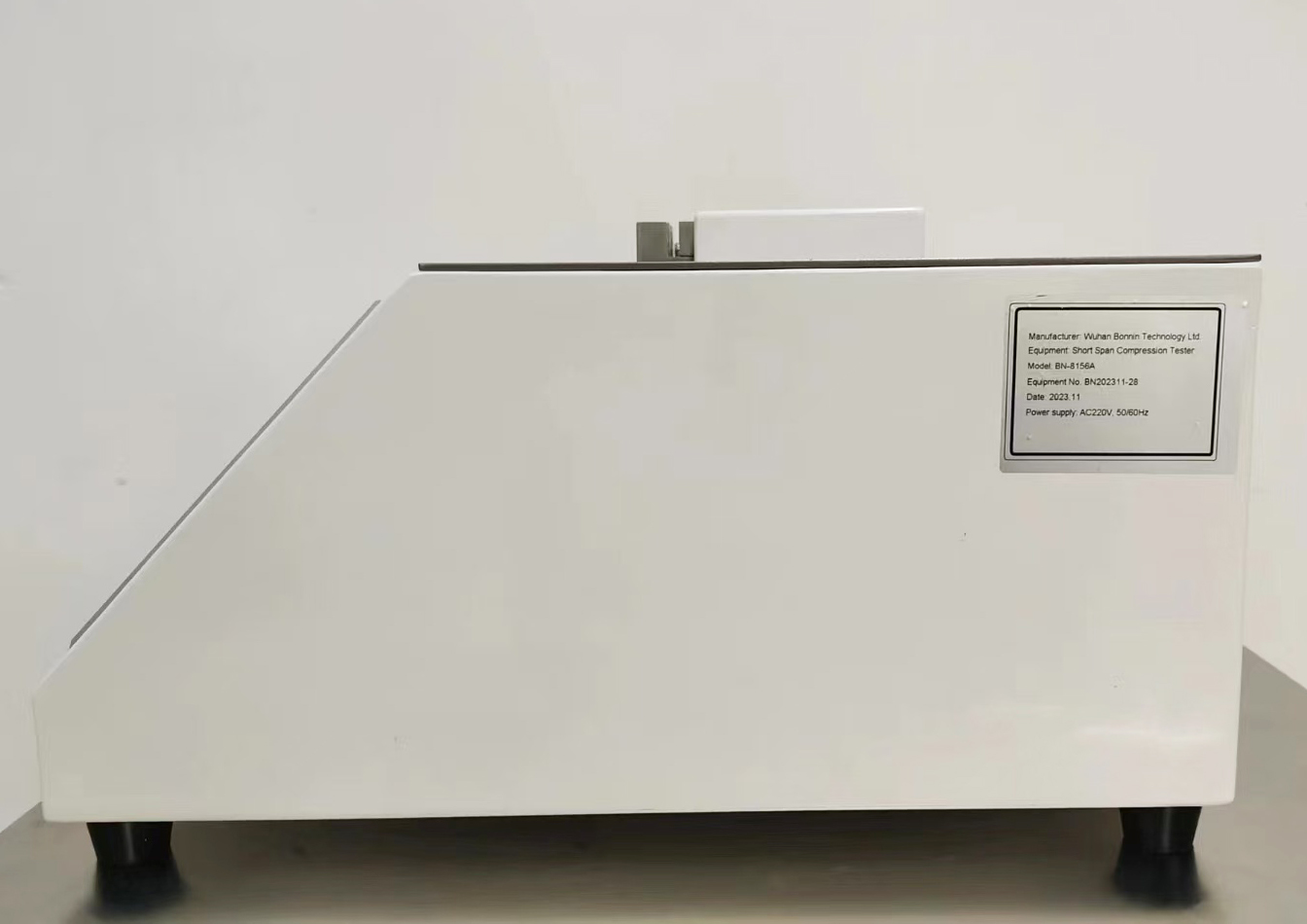

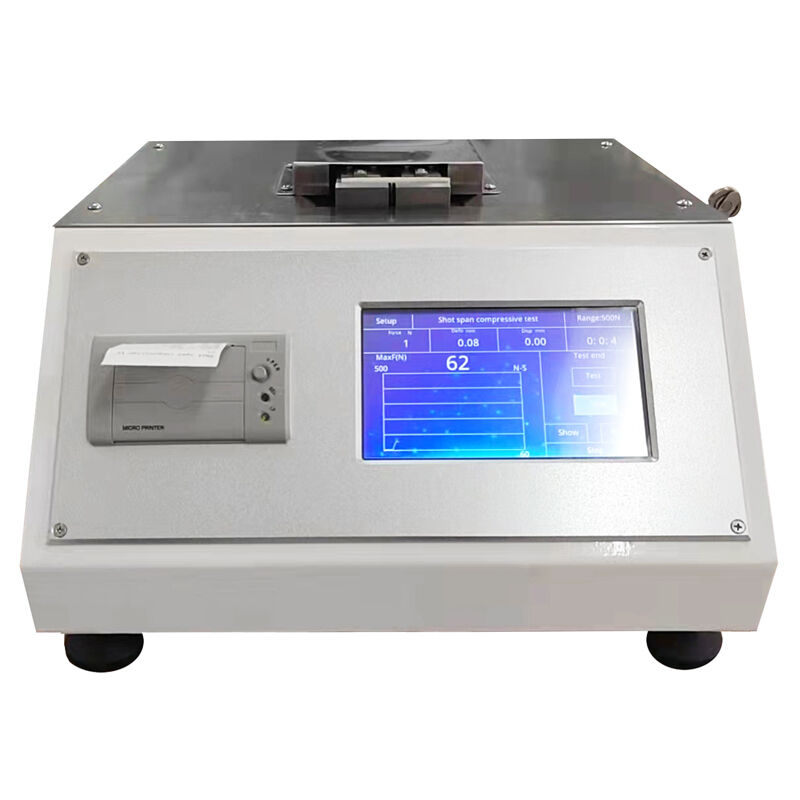

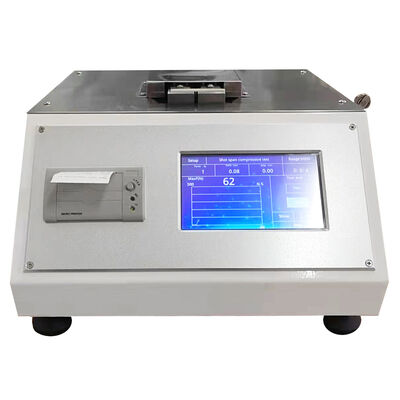

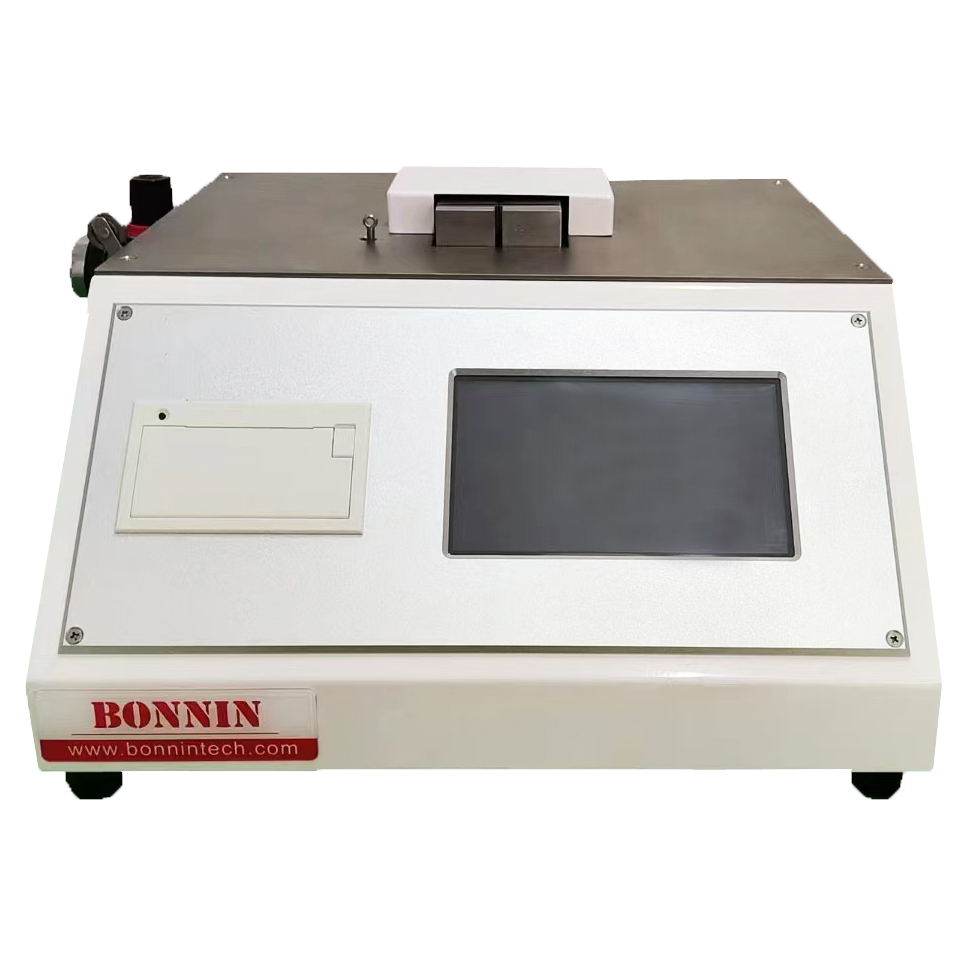

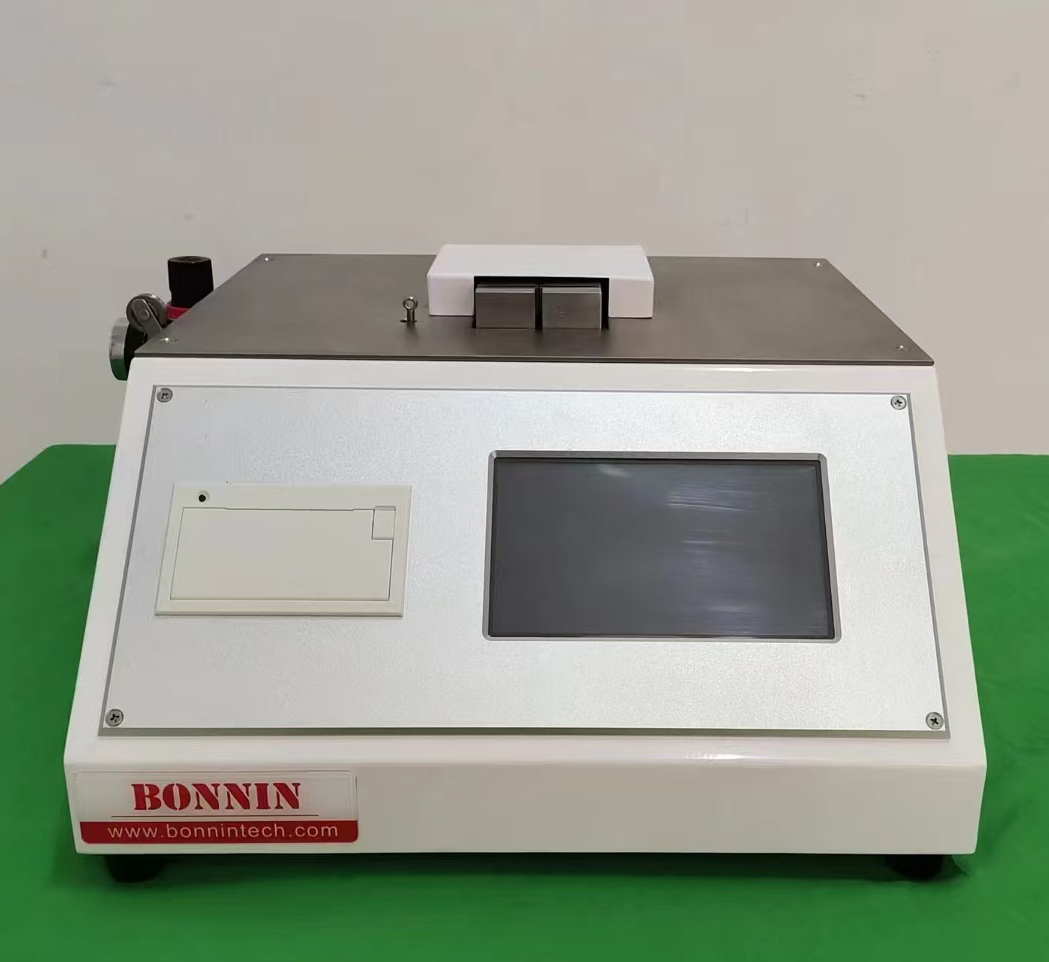

BN-8156A Paper Board SCT Short Span Compression Tester is used to determine short-range compression strength. Compression strength CS (Compression Strength) = kN / m (maximum compression resistance / width 15 mm). The instrument is easy to use and has high measurement accuracy. Its open design allows samples to be easily placed in the test port. The instrument is controlled by a built-in touch screen to select the test method and display the measured values and curves.
Instrument characteristics
Clamping pressure is adjusted
Pneumatic clamping of samples
Adjustable test speed
The instrument is controlled by a touch screen
Visual control screen, intuitive menu operation, multiple languages
The icon shows the test results, showing the compressive strength curve
Technical parameters
| Sample width | 15 ± 0.1 mm |
| Test range | 1 ~ 500 N (0.06 ~ 33.3 kN / m) |
Compression distance: 0.3 ~ 0.7 mm
Clamping length: 30 ± 0.5 mm
Test speed: 3 ± 0.1 mm / min
Accuracy: 0.15N, 0.01kN / m
Power supply: 220 VAC, 50 / 60H

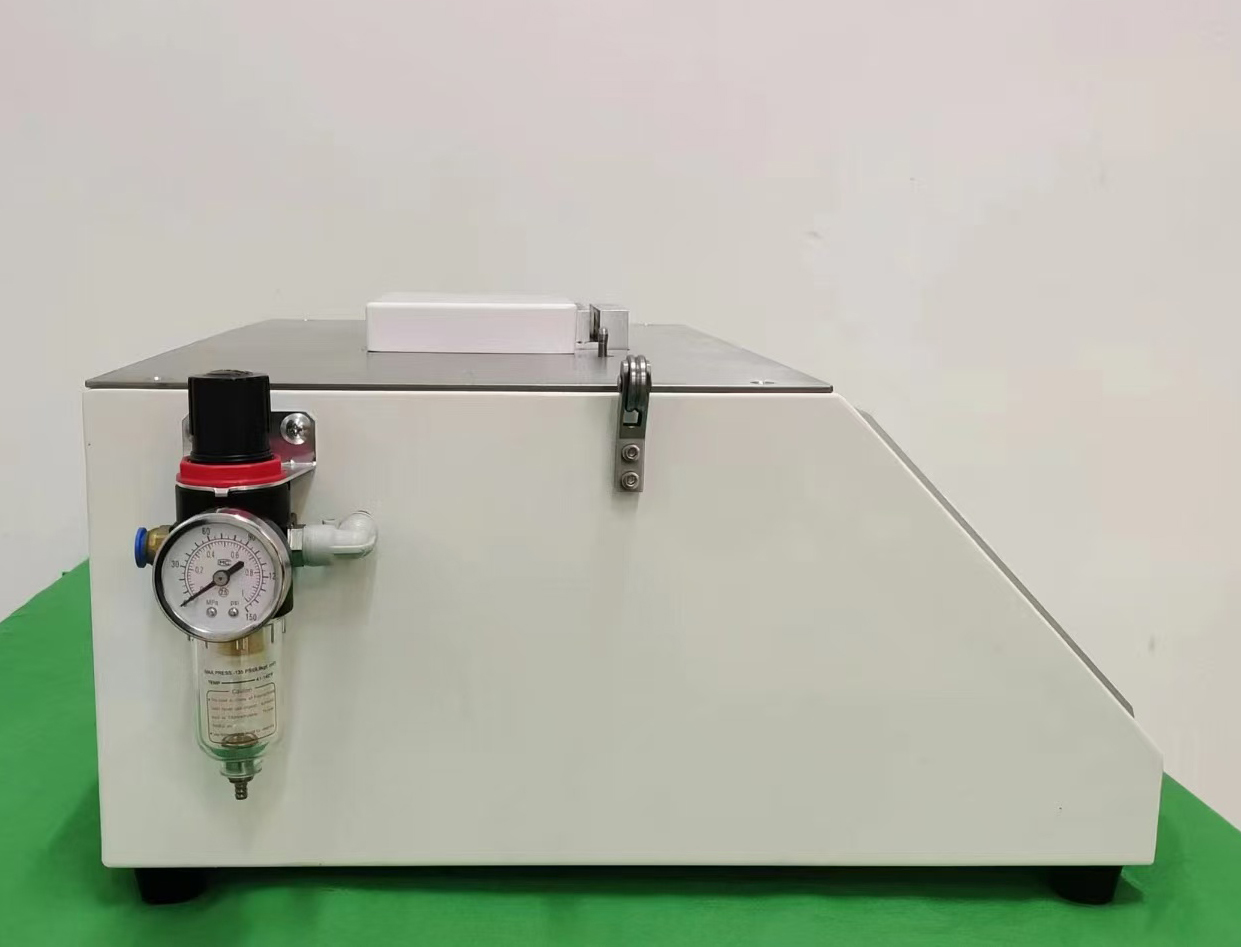

Air source: 0.5MPa
Dimensions: 505 * 355 * 480mm
Characteristics
Clamping pressure is adjusted
Pneumatic clamping of samples
Adjustable test speed
The instrument is controlled by a touch screen
Visual touch control screen, intuitive menu operation, with micro-printer
The icon shows the test results, showing the compressive strength curve
Technical parameters
Sample width: 15 ± 0.1 mm
Test range: 1 ~ 500 N (0.06 ~ 33.3 kN / m)
Compression distance: 0.3 ~ 0.7 mm
Clamping length: 30 ± 0.5 mm
Test speed: 3 ± 0.1 mm / min
Accuracy: 0.15N, 0.01kN / m
Power supply: 220 VAC, 50 / 60H
Air source: 0.5MPa
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
