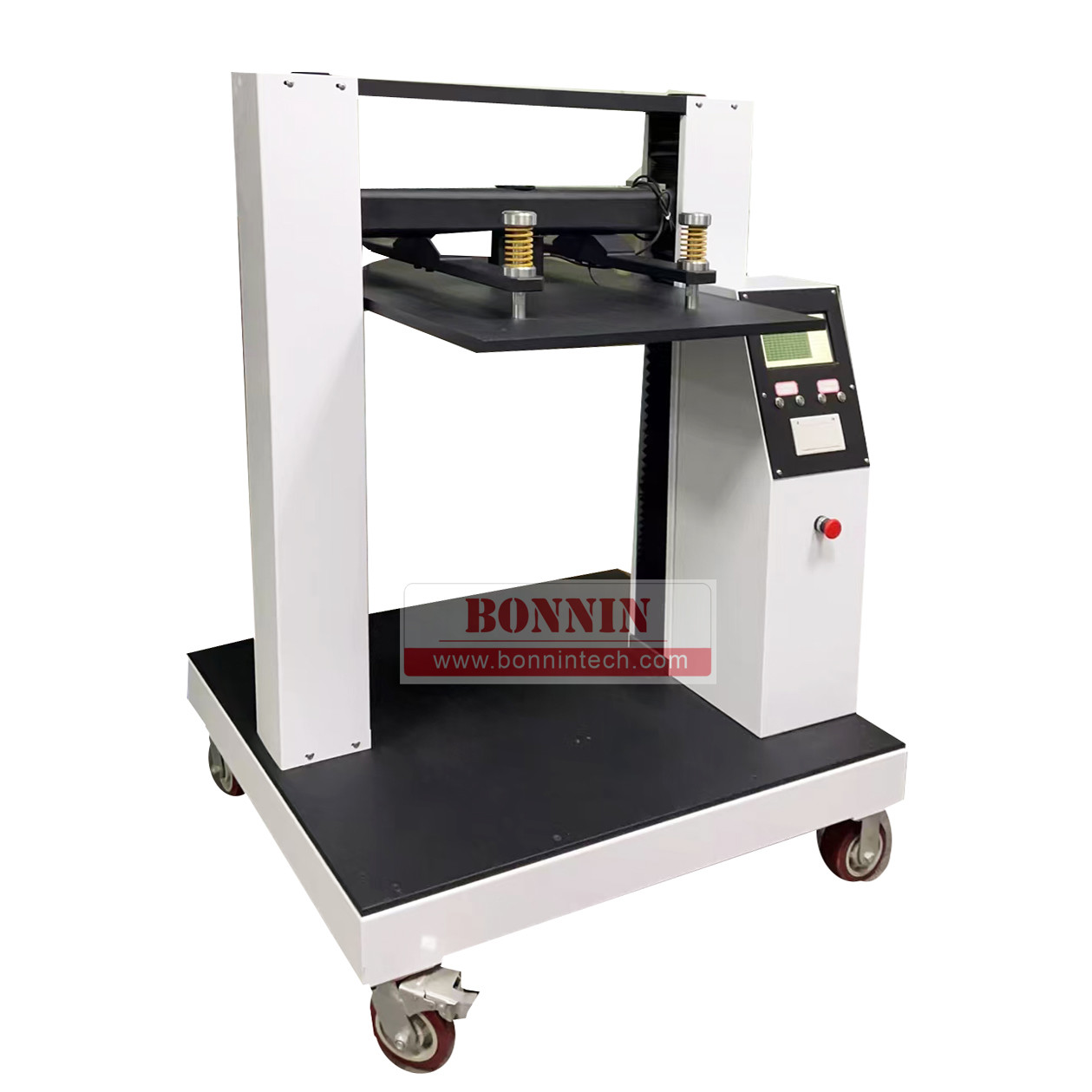

BN-8020 Packaging Corrugated BCT Box Compression Tester

BN-8020 corrugated box compression strength tester (BCT box compression tester) is used to test compression strength and stacking strength of packaging carton box, it can be used to test various size: small size box, middle size box, large size box, and so on.

Standards:

ISO2872, ISO2874, TAPPI-T804, JIS-20212, ASTM-D642, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3, GB/T4857.4, QB/T1048

Instrument features

• Gantry structure design, double ball screw, parallelism is good, good stability, long service life;
• The use of AC system control, the use of the latest segmentation technology, the instrument positioning accuracy, fast response, saving the test time and improve the test efficiency;
• Over-range alarm function, protection of precision sensors;
• Using high-speed ARM processor, a high degree of automation, data acquisition fast, automatic measurement, intelligent judgment function, safe and reliable;

• Using 32-bit high-precision AD converter (resolution of up to 1 / 10,000,000) and high-precision load cell to ensure that the instrument force data collection of the rapidity and accuracy;
• Using modular integrated thermal printer, easy to change paper;
• Chinese and English switch operation menu (Chinese-English), and can switch at any time;
• Can be connected to computer software, with real-time display compression curve function and data analysis tube function;

Technical parameters:

• Force range :(25~5000)/(50~10000)(100~30000)N

(100~50000)N, more other can be choosed

• Measuring size:(600*600*600)mm/(800*600*800)mm

(1000*800*1000)mm/(1000*1000*1000)mm/(1200*1000*1200)/(1500*1200*1500)mm

• Accuracy:0.01N
• Force accuracy:less then ±1%
• Deflection error:≤±1mm
• Force range:4%～100%FS
• Parallelism:≤1mm
• Test speed:(10±3)mm/min(:5±1mm/min)
• Return speed:90mm/min
• Unit interchange:N/Lbf /kgf interchange
• Testing function:compression strength, static compression strength, stacking strength
• Printer:thermal printer
• Environment:temperature(20±10°C, moisture <85%
• Dimension: base on compression space
• Weight:about 300kg

FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
