| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | BN-8025C |
| Minimum Order Quantity: | 1 set |
| Price: | USD1000-4000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Equipment: | Paperboard Corrugated MULLEN Burst Strength Tester | Test Range: | 50 ~ 1400kpa (for Paper Test); 250 ~ 5600kpa (for Paper Board Test) |
|---|---|---|---|
| Warranty: | 12 Month, Life-time Technical Support |

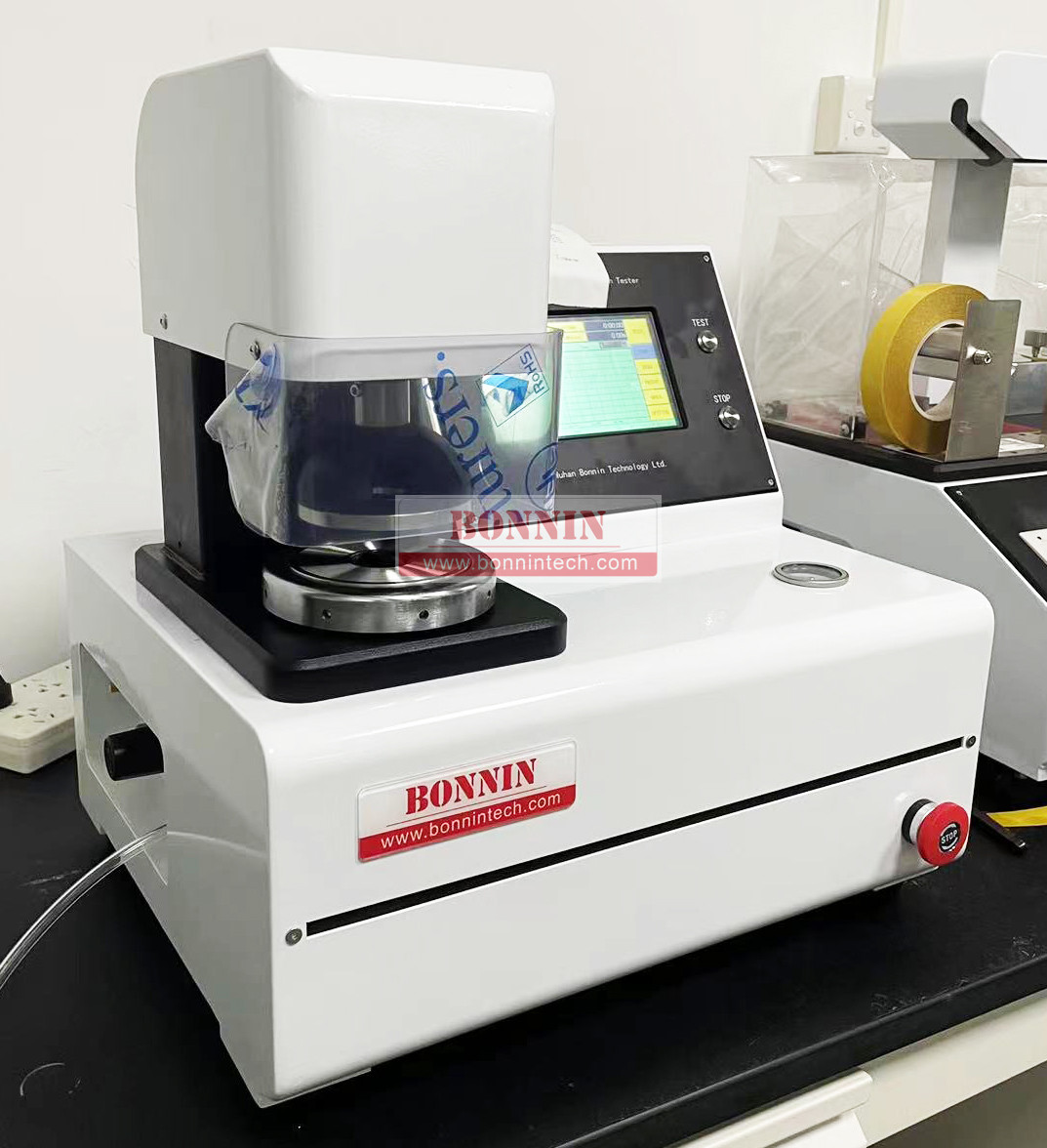

BN-8025C Automatic Mullen bursting strength tester is used to test the bursting strength of all kinds of paper, such as packaging materials, including plain paper, corrugated paper, toilet paper, packaging, tape, leather, packaging films, fabrics, etc. Adopt advanced microcomputer controller and digital processor, to ensure result precision. With thermal printer, to save and print out test data. Safty protection device, to ensure overload power off. It is based on the international Mullen method.
Standards:
ISO2758, ISO2759, ASTM D2210, TAPPI TT403, JISL1096 / L1018 / P8112 / P8131 “paper – the determination of bursting strength.
Technical parameters:
| Model | BN-8025C |
| Measuring range | 50 ~ 1400kpa (for paper test); 250 ~ 5600kpa (for paper board test) |
| Accuracy | ≤ ± 0.5% |
| Resolution | 0.01kpa |
| Deformation error | ≤ 1mm |
| Up and down the plate concentricity | ≤ 0.25mm |
| Film convex pressure | (9 ± 0.2) mm / (30 ± 5) kPa |
| Oil delivery speed | 95 ± 5ml / min; 170 ± 15ml / min |
| Pressure plate diameter | Upper plate diameter 30.5 ± 0.1mm; lower plate diameter: 33.1 ± 0.1mm; Upper lower plate diameter 31.5 ± 0.1mm |
| Man-machine interface | English touch screen |
| Clamping mode | automatic clamping |
| Clamping force | 400kpa ~ 1200kpa (adjustable) |
| Print output mode | Modular thermal micro-printer |
| Instrument size | (428× 318× 412 ) mm (L×W×H) |
| Instrument weight | 50KG |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
