| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | BN-AP01 |
| Minimum Order Quantity: | 1 set |
| Price: | USD4000-8000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Equipment: | Automatic Digital Air Permeability Tester For Paper | Test Range: | 0~400L/dm²/min, 0~200 (Pa/ Cm²), 0.01~600mm/s |
|---|---|---|---|
| Warranty: | 12 Month, Life-time Technical Support |

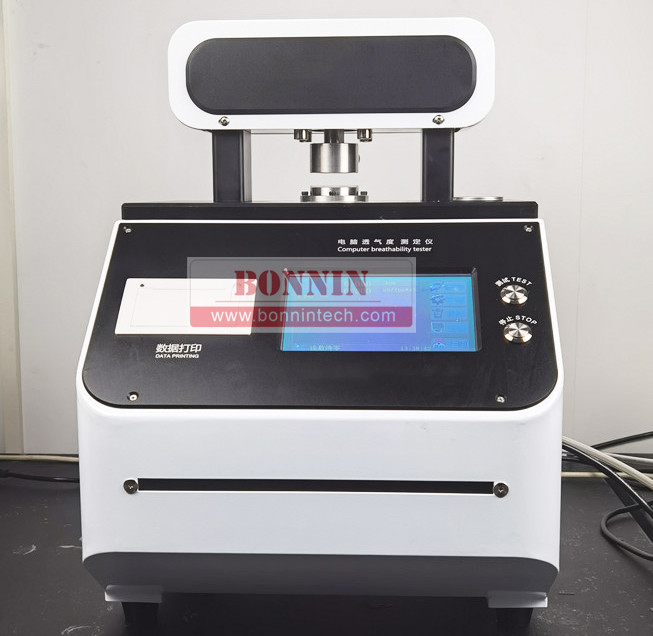

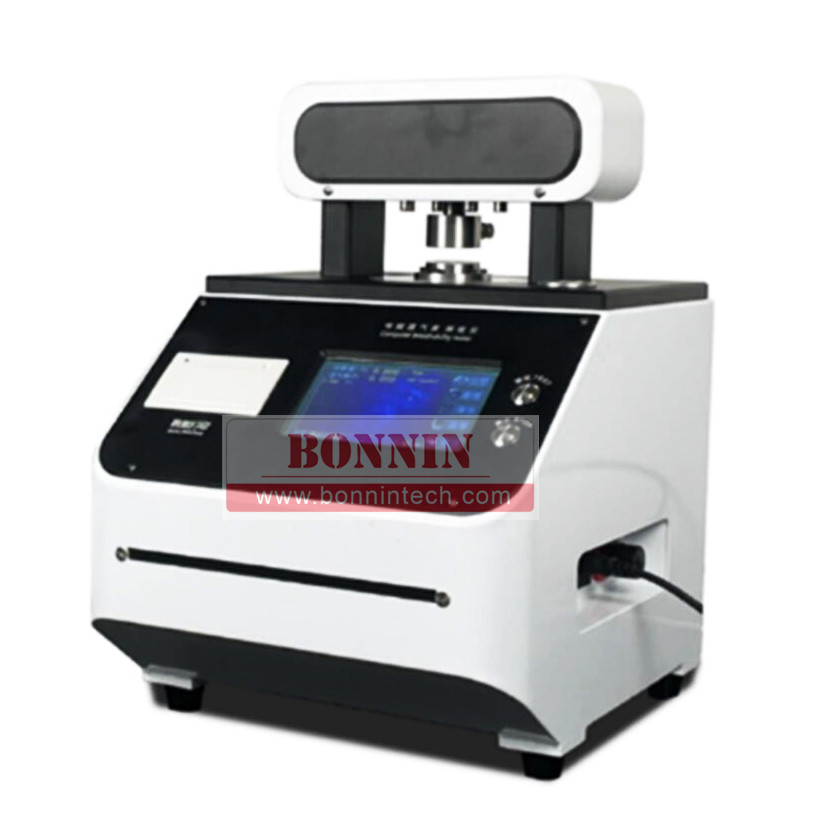

BN-AP01 Automatic Digital Air Permeability Tester adopts new technology and cooperates with the most general test method to test the air permeability of paper, cardboard or other sheet objects. This instrument is a fully automated instrument controlled by a single-chip microcomputer. Its test method meets the requirements of various methods such as Schober, Bendtsen and Gurley. It is an advanced instrument for testing paper air permeability in the papermaking, packaging and cigarette industries, and its performance meets international standards.
Related standard
In line with GB/T458, ISO5636/2, QB/T1667, GB/T22819, GB/T23227, ISO2965, YC/T172, GB/T12655
ISO9237, EN 14683:2019
Technical parameter:
Measuring range (pressure difference 1kPa):
Type A: 0～2500mL/min, 0.01～42μm/(Pa•s);
Units (four): μm/(Pa•s), CU, ml/min, s(Gurely)
Accuracy: Type A: 0.01μm/Pa•s, 0.06ml/min, 0.1s (Gurely)
Test area: 10cm², 2cm²and 6.45cm²(optional)
Linearity error: ≤1% test
Pressure difference: 0.05kPa～6kPa
Power supply: AC 220V±22V, 50Hz
Weight: about 30 kg
English display on the touch screen, micro-printer
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
