| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | BN-8035 |
| Minimum Order Quantity: | 1 set |
| Price: | USD5000-15000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Drum Diameter: | 400mm | Heating Temperature: | Room Temperature ~ 160°C Infinitely Adjustable |
|---|---|---|---|
| Warranty: | 12 Month, Life-time Technical Support |

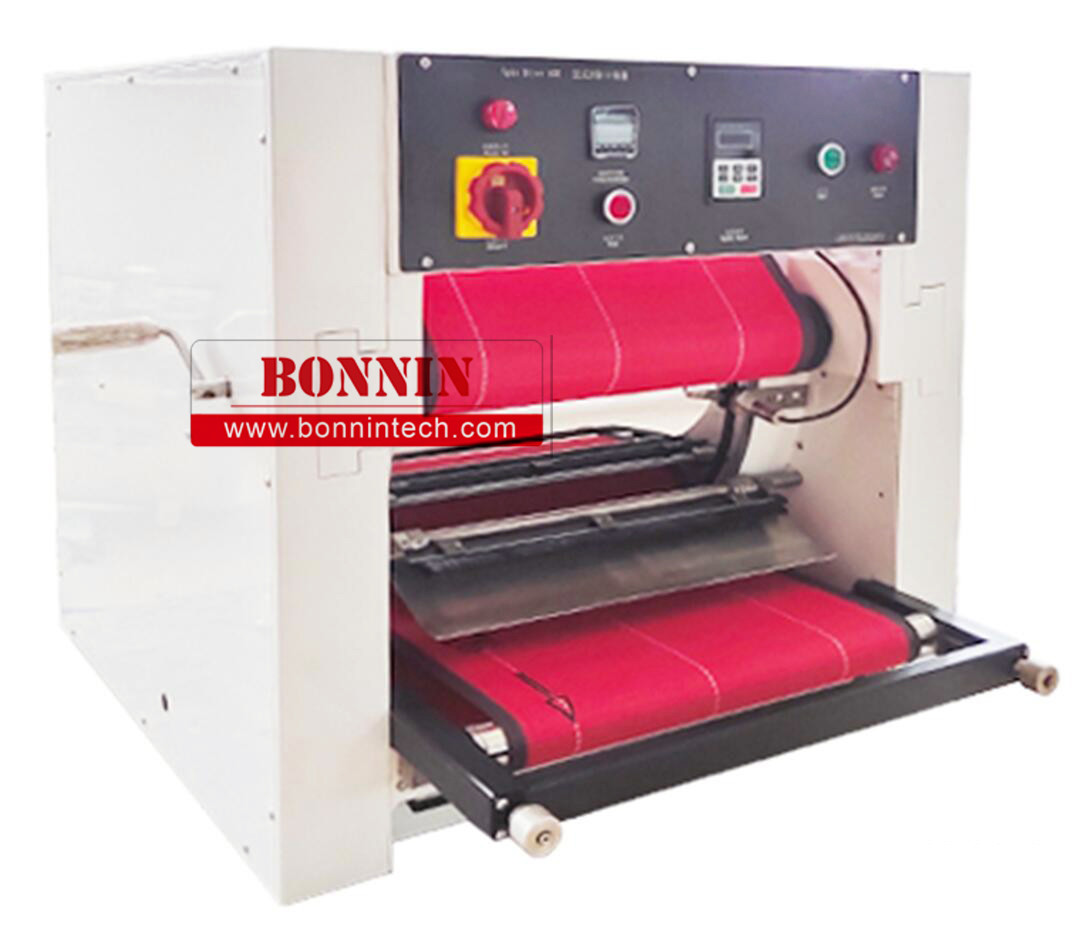

BN-8035 Laboratory Paper Rotary Rapid Dryer
The rotary dryer is a device specially used for the rapid drying of thin sheet materials such as ordinary paper, synthetic fiber functional paper (aramid paper/PET paper), inorganic fiber composite materials, etc. It completes rapid drying through the rotary structure of the drying cylinder. The cylinder body is made of stainless steel, uses electric heating, and has a dual temperature sensor control system.
This dryer is mainly used for drying thin sheet materials for experimental. The built-in heating device can heat the drum surface to the set temperature, place the sample on the conveying blanket, and the drum rolls up the sample and delivers the dry paper after half a turn. Designed with a very thick drum wall to accumulate heat, which effectively prevents the temperature drop and uneven temperature distribution caused by wet paper.
The rotary dryer is more suitable for enterprise R&D departments or laboratory applications, material R&D laboratories in colleges and universities, scientific research applications in major research institutes, and quality inspections by major quality supervision bureaus and inspection and quarantine bureaus, etc.
Technical indicator
Drum diameter: 400mm
Drum material: 304 stainless steel
Drum surface treatment: fine grinding mirror treatment
Drum width: 400mm
Heating temperature: room temperature ~ 160°C infinitely adjustable
Temperature difference uniformity: temperature uniformity control 0-8°C
Conveying speed: 10-200mm/min infinitely adjustable
Paper removal pressure: mechanical pressure, screen bottom roller can be fast
Felt cloth fastening: polyester mesh cloth is adjusted to different tightness through the fastening adjustment roller (high temperature resistant polyester)
Temperature control: Omron drying temperature control system
Power requirements: 220V/50Hz; 3500W
Equipment size: 730*720*910mm
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
