| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | Q1000 Q2000 |
| Minimum Order Quantity: | 1 set |
| Price: | USD2000-5800/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Product Name: | Automatic Liquid Surface Tensiometer | Surface Tension Test Range: | 0－2000mN/m; 0－1000mN/m |
|---|---|---|---|
| Surface Tension Accuracy: | 0.1mN/m; 0.01mN/m | Display: | Large English Color Touch Screen |
| Loading Volume: | 25/100/250 ML |

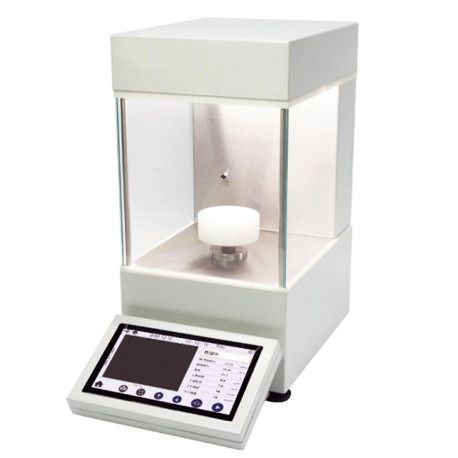

Du Nouy Ring & Wilhelmy Plate Liquid Surface Tension Meter Interfacial Tensiometer, FORCE TENSIOMETER Q1000 Q2000 Laboratory Automatic Liquid Surface Tensiometer
Characteristics:
The simple operation of the Q-Series Tensiometers is tightly coupled with the software's clear user guidance. Our ST Flash software supports simple results management with automatic summary charts, comprehensive measurement reports and transparent data organization, as well as CMC analysis and calculations.
▇ Support data collection, and label the data for easy viewing and comparison.
▇ The collected data is saved in the form of a TXT file, which is convenient for viewing and conversion, and a graphic document is generated in the form of PDF when printing.
▇ Supports simultaneous comparison of up to 8 sets of data.
▇ ST Flash software provides a toolkit for analyzing CMC concentration.
▇ The software supports Chinese and English operation and display.
Technical indicators:
| Model | Q2000 | Q1000 | Q500 |
| Test method* | Plate method & Ring method | ||
| Surface Tension Test Range | 0－2000mN/m | 0－1000mN/m | 0－500mN/m |
| Surface Tension Accuracy | 0.1mN/m | 0.01mN/m | 0.001mN/m |
| Density range** | 0－3.000g/cm3 | N/A | |
| Density Accuracy** | 0.001g/cm3 | N/A | |
| Operation method | Automatic lifting and lowering of sample stage Automatic measurement | ||
| Lifting speed | 0－300mm/min Arbitrarily Adjustable | ||
| Temperature measurement | -40℃－250℃(Optional PT100 temperature sensor) | ||
| Display method | 7-inch touch screen, data read directly | ||
| Data method | Support data storage/view/print | ||
| Measure time | Normally within 60 seconds | ||
| Data output** | RS232 (printer) or U disk | ||
| Data software | Includes ST Flash software | ||
| Size | 47*24.5*47.5cm L*W*H | ||
| Level way | Electronic level adjustment | ||
| Net Weight | 18kg | ||
|
|
110V or220V,50W | ||
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
