| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | UP Series |
| Minimum Order Quantity: | 1 set |
| Price: | USD2000-8000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |

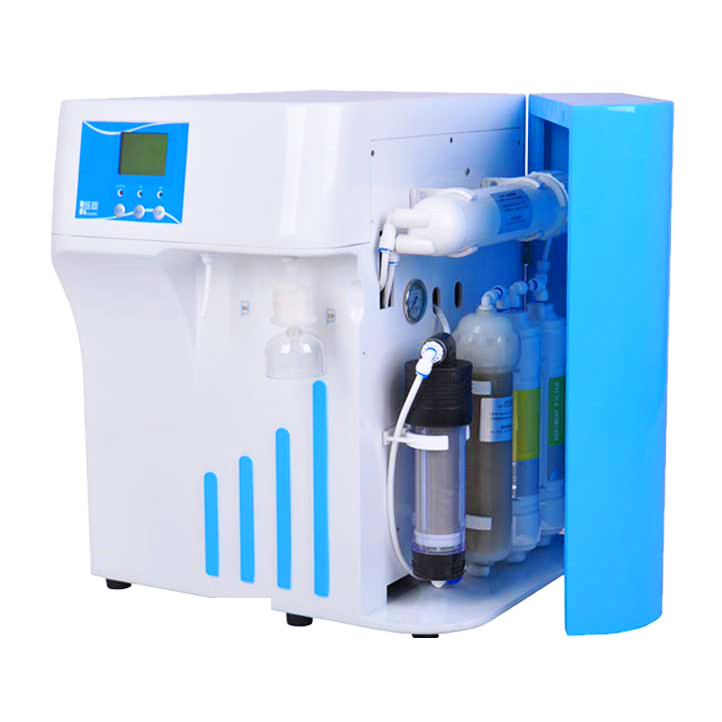

| Product Name: | Ultrapure Water Purification System | Flow Rate: | Up To 2 Liters/minute (with Pressure Tank) |
|---|---|---|---|
| Pure Water Outlet: | Ultrapure, Deionized Water | Display: | English Color Touch Screen |
| Highlight: | 316SS Pure Water Purification Equipment,220V Pure Water Purification Equipment |
||
This laboratory water purification systems are suitable for all kinds of physical and chemical detection, biochemical analysis, blood test, micro analysis, washing special, HPLC, IC, GC, analysis experiments.
Features:
1. Inbuilt 10um 316 stainless steel washable filter, remove minor impurities, can replace PP cotton filter, automatic cleaning anytime
2. KDF unit with USA filteriing material, pre-filtering residual chlorine, heavy metal, restrain fungus growing, protect the postpositional purification system from dissipation to lengthen ultra purified column lifetime.
3. Inbuilt transparent pressure barrel which with changable water storing pouch inside, technologies of nano-antibacterial and UV resistant are adopted to the pouch for reducing creature bacteria abnormal smell and decreasing chemicals like nitrite, prevent water in barrel from sencondary pollution.
4. Spraying process for machine case, openning at side, 11'' type U korean quick-insert filtration column--easy for exchange and repair.
5. LCD for online monitoring dual water purity, display both RO water conductivity UP water resistivity, machine running status also can be shown.
6. Menu operation interface, various measured parameters can be modified and set, multiple running status display and indicating light alert, timely reflect machine operating condition such as high pressure-stop, low pressure-alert, water full-stop etc.
7. RO & ulrapure Water purity exceeding alarm, automatically remind filter elements replacement; setting water colletion time, drawing water via touching key. RO and UP water drawing indicating light automatically prompt.
8. Equipped with portable test pen for testing TDS content, conductance and water temperature.
9. Pipeline with quick-insert connector ( NSF certificate), dual-wavelength UV lamp for sterilization & decreasing TOC, original imported 5000 dalton ultra filtering element for removing endotoxin and heat source.
Filtration Flow Chart:
Technical datas:
| Model No. | UP-S | UP-V | UP-F | UP-VF | UP-Extract | UP-Extract-V | UP-Extract-F | UP-Extract-VF |
| Water Source | Urban tap water,inlet pressure 0.15-0.4 Mpa, water temperature 5-40 dgree centigrade | RO water, deionized water or distilled water etc. | ||||||
| Output | 10/20/30L/H | 60-90L/H | ||||||
| Flow rate | 1.5-2L/Min ( with pressure barrel) | |||||||
| Purity | Pure water: desalination rate 95%-99% ( with new RO membrane) Ultrapure water: Resistivity 18.25MΩ.cm@25 degree centigrade, TOC less than 10ppb, particle(more than 0.22 um) less than 1/ml, microbe less than 1cfu/ml | |||||||
| Power supply | 220V 50HZ, 120W | |||||||
| Dimension | L47*W45*H55cm | |||||||
| Application | UP & UP-Extract: Physical-chemical test,biochemical analysis, blood test, microanalysis, dedicated flushing, HPLC, IC, GC analysis experiment | |||||||
| UP-V&UP-Extract-V: Atomic absorption/emission spectra, mass spectrometry, TOC test, environment monitoring, biochip developing,micro-organics analysis | ||||||||
| UP-F&UP-Extract-F: High sensitivity ICP/MS,PCR,PPT grade analysis, isotope analysis,molecular biology, life sciences, disease control center, medicine inspect insitute, quality inspect institute, high-school sicentific research, various high precision instruments | ||||||||
| UP-VF& UP-Extract-VF: Molecular biology, life sciences,gene study,cell culture,amino acid analysis,protein purification, toxicology study, drug R&D, medical inspection | ||||||||
Configurations:
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
