| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | Soxhlet-4 |
| Minimum Order Quantity: | 1 set |
| Price: | USD2000-5000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Automatic Soxhlet Apparatus | Display: | English LCD |
|---|---|---|---|
| Capacity Per Batch: | 6pcs/batch | Temperature Range: | Room Temperature +5℃～280℃ |
| Measuring Range: | 0～100% | Power: | 1KW |
| Highlight: | Soxhlet 4 fat extraction apparatus,soxhlet extraction machine 50Hz,automatic soxhlet apparatus 220VAC |
||

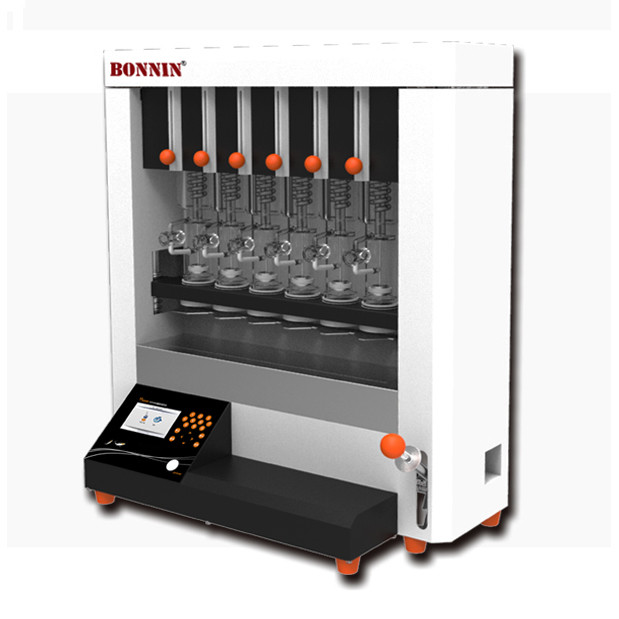

Soxhlet-4 Semi-automatic Soxhlet Fat Extractor, 6 Stations Soxhlet Fat Analyzer
Soxhlet-4 Semi-Automatic Soxhlet Fat Extractor, also named Semi-Automated Soxhlet Extract Apparatus, is designed based on the Soxhlet extraction principle with weight method to determine the fat content. This Soxhlet Fat Analyzer integrates such functions as soaking, extraction, leaching, heating, condensation, and solvent recovery. It features sealed metal bath heating with automatic temperature control, ensuring uniform heating and safe operation; six samples can be tested at the same time, and optimal temperature can be selected according to the difference between reagent boiling point and ambient temperature to achieve quick analysis; reagents can also be recycled to reduce test cost; and soaking, extraction and solvent recovery can be done in one step. Therefore, this device is characterized by reasonable design, stable performance, good reproducibility, high accuracy, easy operation, saving time and effort, and so on.
Features:
The timer circuit is isolated from the extraction space, ensuring device security
Abundant interface contents give simultaneous display of given temperature, actual temperature, given time, and heating time
Intelligent man-machine dialogue control system
4.3" LCD screen and microcomputer control system are adopted
Technical data:
| Temperature range | Room temperature +5℃～280℃ |
| Measuring range | 0～100% |
| Temperature accuracy | ±1℃ |
| Sample weight | 0.5～15g(generally 2~5g,depending on sample) |
| Capacity per batch | 6pcs/batch |
| Solvent cup volume | 80mL |
| Solvent recovery | ≥80% |
| Shortened extraction time | 20~80% |
| Power supply | 220VAC±10%, 50Hz |
| Power | 1KW |
| Dimensions | 650mm×320mm×715mm |
| Net Weight | 35Kg |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
