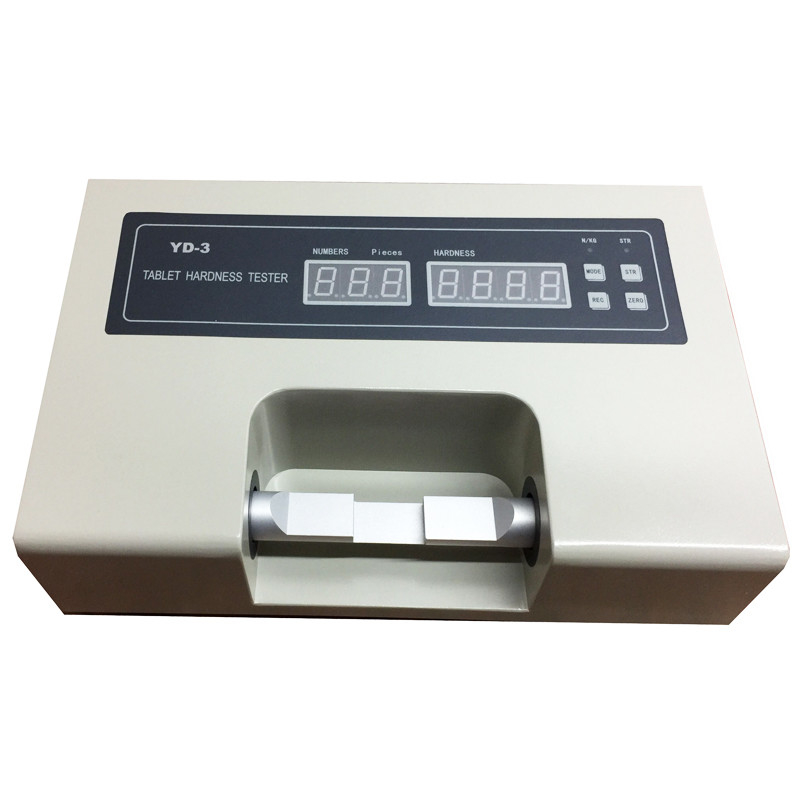

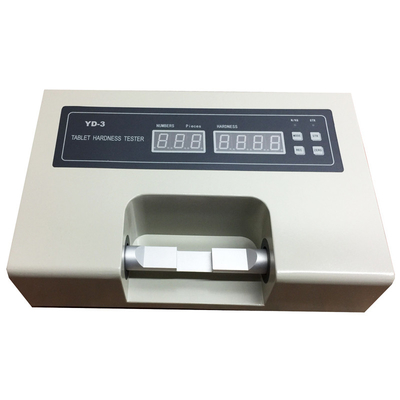

YD-2 Tablet Hardness Testing Machine Pharmaceutical 2N To 199.9N Auto Diagnose

YD Series Tablet hardness testers are instruments for detecting breaking hardness of tablet.

YD-2 Tablet Hardness Testing Machine, YD-3 Tablet Hardness Tester

Applicable standards:

Corporate standard (Tablet hardness tester ) Q/12XQ0186-2010

Features:

• The tablet is loaded artificially and pressed automatically.
• There is high accuracy press sensor and hardness data is displayed on LED.
• It tests tablet hardness continuously. The biggest number is 100 pieces of a gang.
• Time of testing will be saved by directly measuring the diameter.
• Test data is displayed and locked automatically, so can test be reset and cycled.
• It can deal with and memorize such data as: hardness of each tablet, the maximum value, the minimal value, the average value, the number of tablets.
• The parameters can be preset at any time. Either preset or real data is displayed on the LED.
• Automation: auto-test, auto-diagnose, auto-alarm.

Specifications:

• Hardness range　　 (2～199.9) N
• Max number in each group ≤100 P
• Hardness accuracy　 ±1.5%
• Power 220V/ 50Hz/ 60W or 110V/ 60Hz/ 60W
• Probe procession range (3～40) mm
• Dimension　　　　 (40*24*16) cm³
• Test period 　　 ≯ 20 S / P
• Weight　　　　　　 8 kg

FAQ 1. Are you a factory or trading company?

We are a factory.

FAQ 2. Can you supply OEM?

OEM is available.

FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.

FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
