| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | HYJ200-SH /HYJ300-SH |
| Minimum Order Quantity: | 1 set |
| Price: | USD200-500/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Clean Grade: | Grade 100(209 E U.S. Federal) | Number Of Bacteria: | ≤0.5per Utensil.hour(90mm Utensil) |
|---|---|---|---|
| Highlight: | 1500ml Ultrasonic Homogenizer,CE high speed homogenizer,High Speed Dispersion Homogenizer |
||

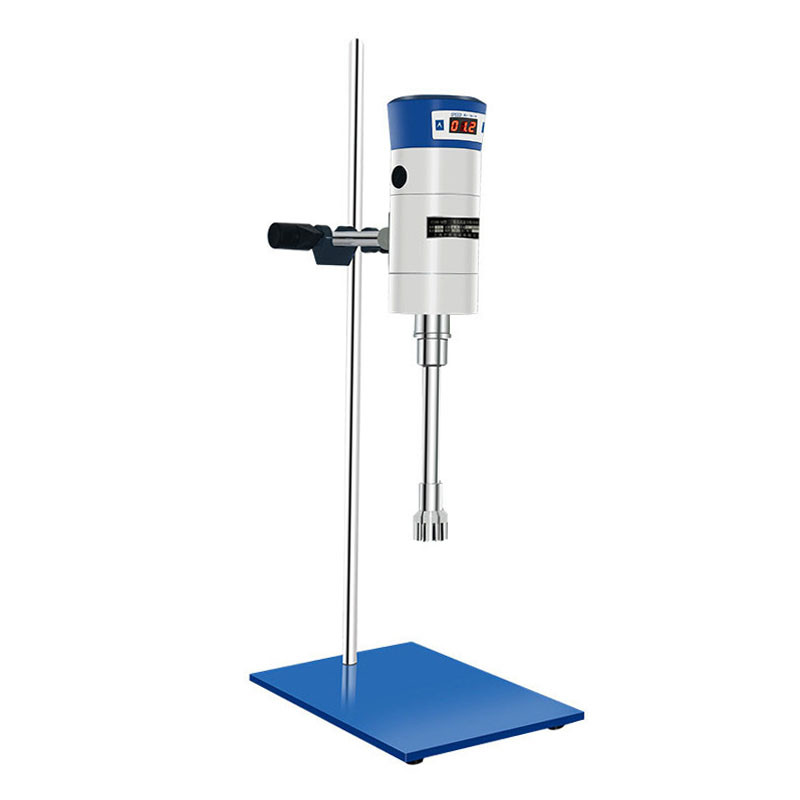

HYJ200-SH HYJ300-SH Lab High-Speed Dispersion Homogenizer
Application
It is suitable for the laboratory to further homogenize the pulverized experimental materials in the liquid medium.
Features
Technical Specification
| Model | High Speed Dispersion homogenizer HYJ200 | HYJ200-SH(Digital) | HYJ300-SH(Digital) |
| Speed range | 300-23000r/nim | 300-23000r/nim | 300-18000r/nim |
| Capacity | 30-1500ml | 30-1500ml | 100-13000ml |
| Input Power | 280W | 280W | 510W |
| Output Power | 200W | 200W | 300W |
| Exterior Dimension | 250*350*600mm | 250*350*600mm | 250*350*600mm |
| Working head | Φ12 mm,Φ18mm | Φ12 mm,Φ18mm | Φ28mm, Φ36mm |
| Working Mode | Intermittent | Intermittent | Intermittent |
| Voltage | AC 220 V 50 Hz | AC 220 V 50 Hz | AC 220 V 50 Hz |
| Torque | 83N.cm | 68N.cm | 68N.cm |
Working Heads parameters
| Heads | 12G | 18G | 28G | 36G |
| Capacity ml(H2O) | 30-800 | 50-1500 | 100-8000 | 150-13000 |
| Suitable viscosity mpa.s | 1000 | 2000 | 6000 | 7000 |
| Rotor line speed s/m | 11 | 15 | 19 | 27 |
| Immersion in liquid height | 25/85mm | 30/120mm | 60/155mm | 60/160mm |
| Stator diameter mm | Φ12 | Φ18 | Φ28 | Φ36 |
| Working head length mm | 150 | 190 | 235 | 240 |
| Operating temperature | 120℃ | 120℃ | 120℃ | 120℃ |
| Work head material | SS304 | SS304 | SS304 | SS304 |
| Working head bearing material | PTEE | PTEE | PTEE | PTEE |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
