| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | K5500Plus, K5600 |
| Minimum Order Quantity: | 1 set |
| Price: | USD4000-6800/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Nucleic Acid Range: | 0.4-15000 Ng/μl (DS-DNA) | Protein Measurement Range: | 00.01-400mg/ml (BSA) |
|---|---|---|---|
| Light Path: | 1/0.5/0.05mm Automatic Conversion | Sample Volume: | 1~2.5μL |
| Display: | English Touch Screen | ||
| Highlight: | Bonnin Micro Volume Spectrophotometer,dna spectrophotometer Microdrop,rna spectrophotometer Nanodrop |
||

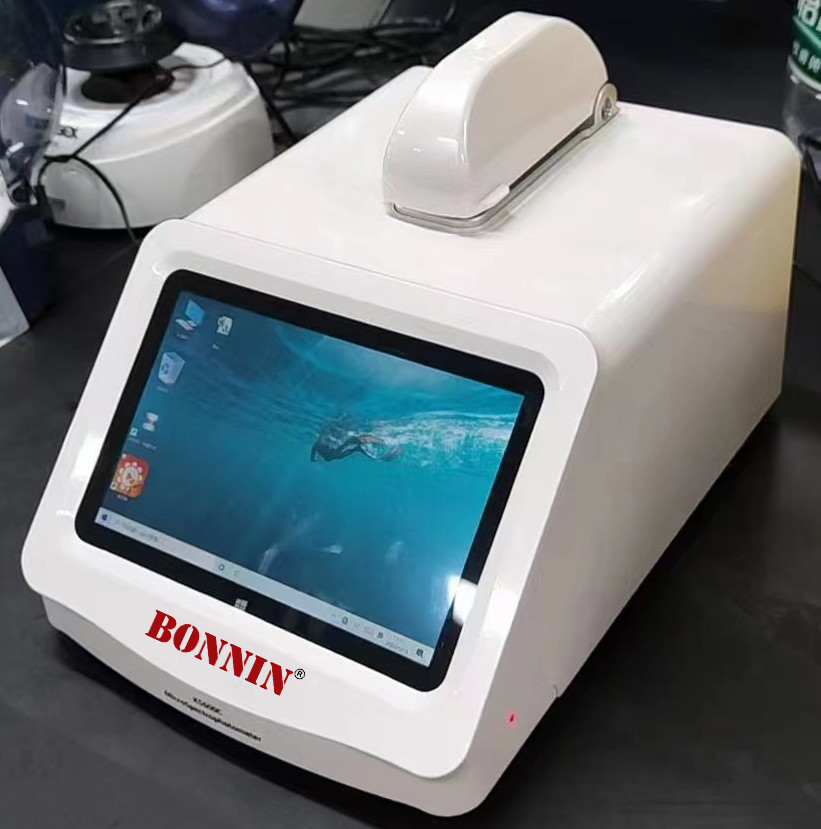

K5500Plus Nano Microdrop UV Vis Micro-Volume Spectrophotometer DNA and RNA
The micro-volume UV-visible spectrophotometers is generally about 0.5 μL to 2 μL sample amount, and the samples are directly dropped on the sample stage without a cuvette. The micro-volume UV-Vis spectrophotometer can quantify oligonucleotides, single-stranded DNA, double-stranded DNA, and RNA in buffer. The absorption wavelength of the high absorption peak of nucleic acid is 260 nm, and the absorption peak of protein is 280 nm.
The full-wavelength microvolume spectrophotometer can function like a common UV-Vis spectrophotometer. For example, the BIO-DL MicroDrop can display the absorbance of the sample under light waves from 185 to 910 nm. Absorbance values at up to 40 wavelengths can be detected simultaneously and the data displayed in the report.
Features:
★ Platform material: stainless steel and quartz fiber
★ Data can be transferred via USB port or network
★ No need to warm up, boot at any time
★ Save data permanently, you can export or delete it at any time
★ Built-in WIFI for remote assistance
★ Unlimited print test results
★ Built-in detection system, high-definition touch screen
★ Built-in fiber to avoid fiber breakage caused by external force collision, resulting in chaotic measurement results
★ Measurement results are automatically saved to spreadsheet mode
★ Globally unique permanent hard drive save history data function
Technical datas:

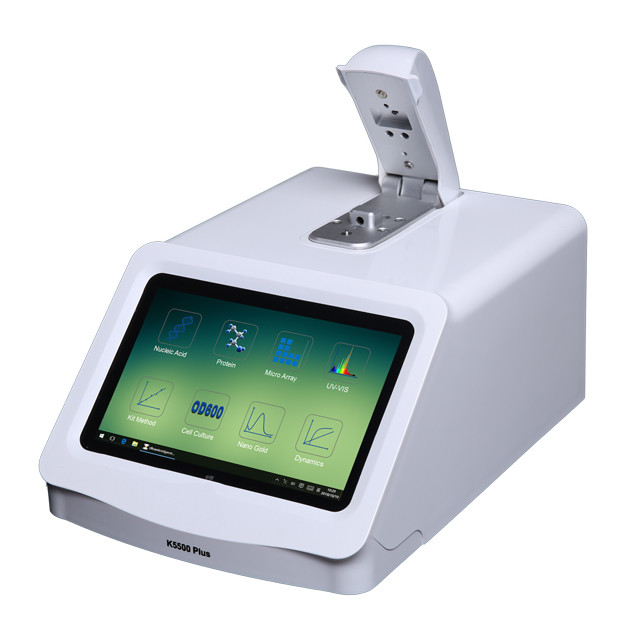

| Model | K5500Plus |
| Light path | 1mm |
| sample volume | 1~2μL |
| Light source | Xenon lamp |
| Detector | 3684-element linear silicide CCD array |
| Detection range | 190~850nm |
| Wavelength range | 190-1100nm |
| Wavelength accuracy | ± 1nm |
| Wavelength resolution | 2 nm (FWHM at Hg 546 nm) |
| Accuracy of absorbance | 0.002 Abs |
| Absorbance accuracy | 1% (0.76 absorbance at 350nm) |
| Absorbance range | 0.02~15Abs, equivalent to 10mm |
| Detection time | less than 3s |
| Nucleic acid range | 1~750 ng/μl, dsDNA |
| Protein measurement range | 0.1~40 mg/ml, BSA |
| Sample measurement time | less than 5 seconds |
| Built-in Method | Nucleic Acid, Protein, Full Wavelength Scan |
| Machine size | 20*30*20cm |
| Machine weight | 2.8kg |
| Packing datas | 50cm*40cm *45cm, 6.5kg carton |
| Model | K5600 |
| Light path | 1/0.5/0.05mm automatic conversion |
| sample volume | 1~2.5μL |
| Light source | Long life xenon lamp |
| Detector | 3684-element linear silicide CCD array |
| Detection range | 190~850nm |
| Wavelength range | 190-1100nm |
| Wavelength accuracy | ± 1nm |
| Wavelength resolution | 2 nm (FWHM at Hg 546 nm) |
| Accuracy of absorbance | 0.002 Abs |
| Absorbance accuracy | 1% (0.76 absorbance at 350nm) |
| Absorbance range | 0.002~300Abs, equivalent to 10mm |
| Detection time | less than 3s |
| Nucleic acid range | 0.4-15000 ng/μl (DS-DNA) |
| Protein measurement range | 00.01-400mg/ml (BSA) |
| Sample measurement time | less than 5 seconds |
| Built-in Method | Nucleic Acid, Protein, Full Wavelength Scan |
| Machine size | 20*30*20cm |
| Machine weight | 2.8kg |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
