| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | MDES Series |
| Minimum Order Quantity: | 1 set |
| Price: | USD8000-18800/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Digestion Method: | MDES-12: 50 Preinstalled Methods, Programming 100 Methods; MDES-10: 20 Preinstalled Methods, Programming 50 Methods | Magnetron Type: | Double Magnetron Variable Frequency Control System |
|---|---|---|---|
| Cavity: | 48L Resonant Cavity | Microwave Output: | 1600W |
| Display: | English Touch Screen | ||
| High Light: | 1600W Microwave Digestion System,Biological Medicine microwave digester,microwave digester Dual Magnetron |
||

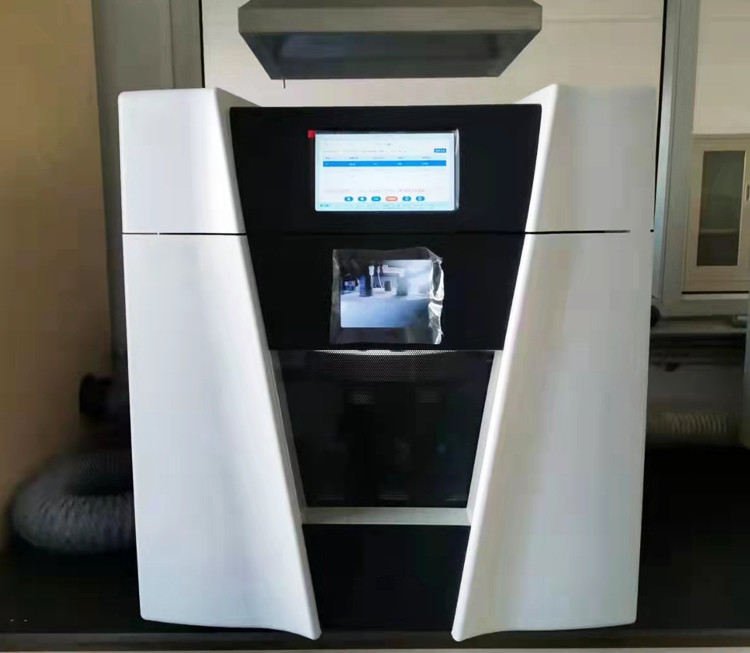

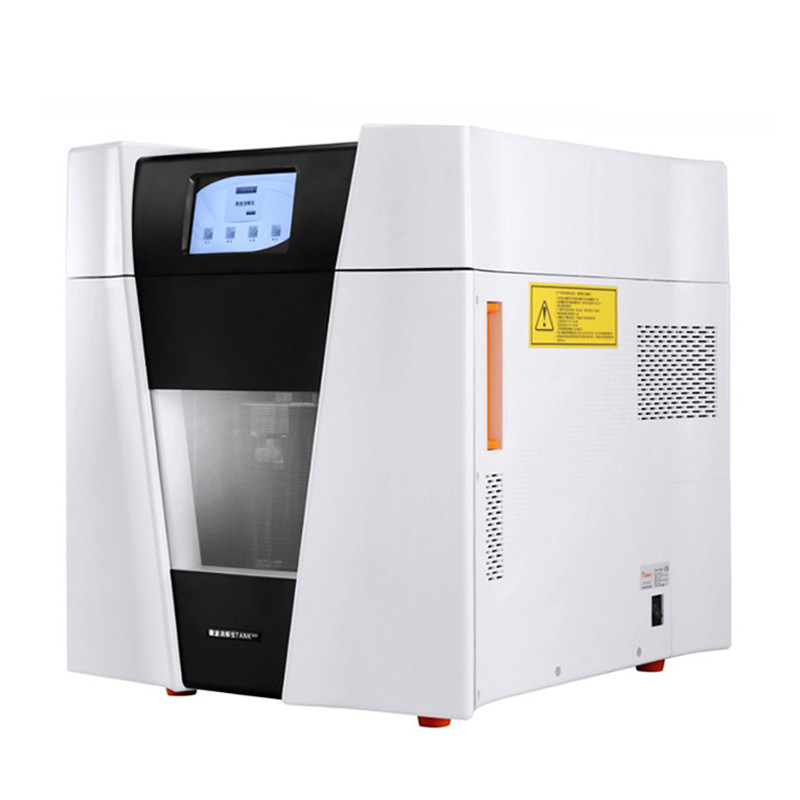

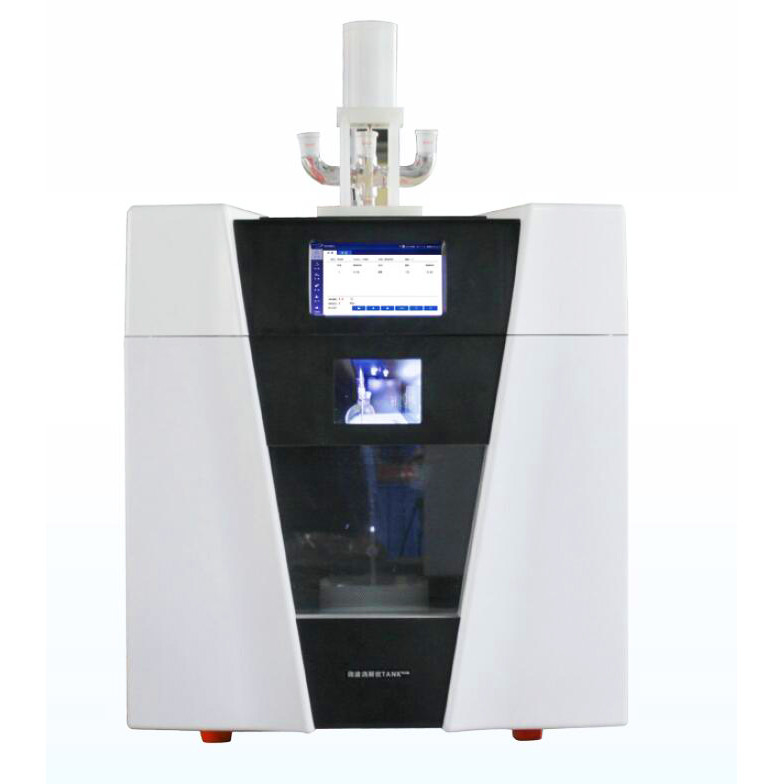

MDES-12 Dual Magnetron Microwave Digestion System For Biological Medicine
Feature :
· Multiple safety protection function.
· Optical fiber temperature control system.
· Double magnetron variable frequency control system.
· Built-in method library (30 methods) and the methods could be programmed.
Introduction:
MDES-12 Microwave Digestion System adopts the international advanced double magnetron frequency microwave heating system and realizes the high power microwave balanced magnetic field safety heating.
Microwave Reaction System has been widely used in food, textile, plastic, geological, metallurgical, coal, biological medicine, petroleum chemical industry, environmental monitoring, sewage treatment, battery manufacturing, cosmetics, etc.
Characteristics:
1. Multiple safety protection function: It has more than ten safety protection measures to ensure experiment safety,including temperature control system, pressure control system, real-time temperature and pressure abnormal monitoring system, explosion-proof security doors, thicken cavity with 10 layer TEFLON coating, High-power exhaust system, program with suspend or start at any time. Ladder-style control temperature system, the material is TFM for the vessel and aerospace composite material for the vessel cover, the vessel cap with PFA and the pressure shrapnel use PEEK.
2. Optical fiber temperature control system: The MDES-12 adopts the internationally advanced optical fiber temperature control system. It avoids producing the spark which other temperature control mode caused, effectively eliminates microwave interference temperature control system and other factors. It not only achieves precision control temperature but also it is the most safe microwave digestion temperature control mode at present.
3. Double magnetron variable frequency control system: It could adjust microwave output continuously. It makes the microwave field more uniform and more accurate that could ensure the sample digestion are uniform.
4. The high accuracy pressure sensor could make the pressure control more precise.
5. 7"LCD color touch-screen real time display the temperature and pressure curve.
6. Built-in method library (30 methods) and the methods could be programmed.
7. The ARM chip with UCOS -II operation system: It is suitable for the experimental preparation equipment which runs stably and operates easily.
Technical Parameters:
| Technical data/Model | MDES-12 | MDES-10 |
| Cavity | 48L Resonant Cavity | 48L Resonant Cavity |
| Microwave output | 1600W | 1600W |
| Magnetron Type | Dual | Dual |
| Max.temperature | 305℃ | 305℃ |
| Working Temp Max | 250 | 250 |
| Temperature accuracy | ±0.1℃ | ±0.1℃ |
| Temperature sensor | Optical Fiber Sensor(directly) | Optical Fiber Sensor(directly) |
| Pressure Sensor | Idea gas | Idea gas |
| Vessel Pressure capacity | 80Mpa | 80Mpa |
| Working pressure capacity | 3MPa | 3Mpa |
| Vessel qty capacity | 1-12/batch | 1-12/batch |
| Vessels in package | 12sets | 10sets |
| Vessel volume | 100mL | 100mL |
| Inner Vessle Material | TFM | TFM |
| Outer Vessel M | aerospace composite | aerospace composite |
| Vessel Cap Material | PFA | PFA |
| Microwave cavity | SS316 with 10 layer Telflon | SS316 with 8 layer Telflon |
| Exhaust System | forced air cooling | forced air cooling |
| Interface | USB, RS232 | NO |
| Wifi Module PC controlling | Standard for PC control | No |
| Power supply | 220VAC±10% 50Hz | 220VAC±10% 50Hz |
| Detection of abnormal voltage | Yes | Yes |
| Video monitoring | YES | NO |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
